FSV85MARK-2
Fishing sonars Ref : IMD0404100BBlack Box Full-circle Scanning Sonar 80 kHz
PRICE : NCDescription
DUAL MONITORS FOR INCREASED PRODUCTIVITY
The FSV-85 MARK-2 has the ability to use a dual monitor setup to extend your sonar display across two screen.
Comparing horizontal and vertical modes is easier when you have dual monitors: you can show two display modes, comparing horizontal and vertical section side by side in separate full-size windows.
HORIZONTAL DISPLAY COMBINATION
The horizontal display mode provides a 360 degree picture around the vessel.

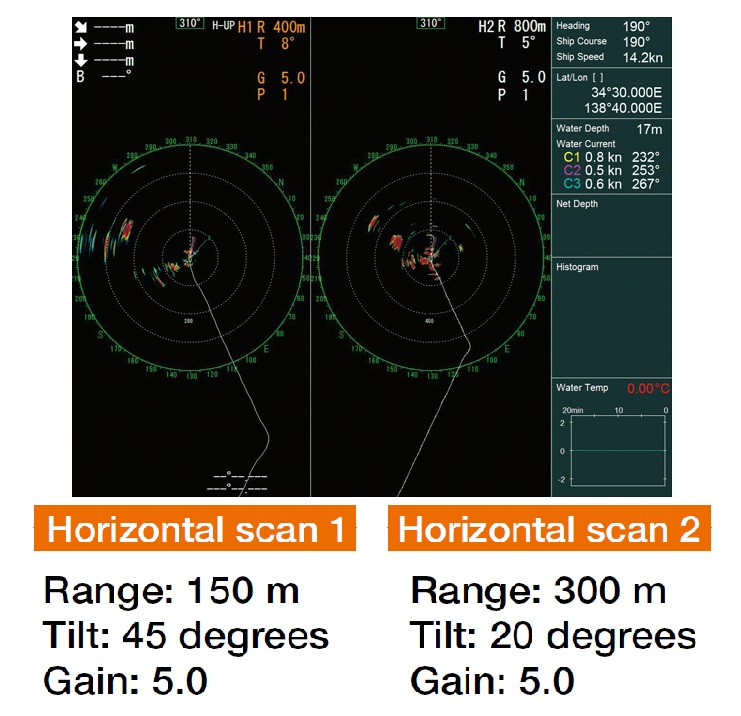

The H2 mode shows one of three kinds of horizontal display combination:
Land-Scape, Portrait, Inset
The range, tilt, gain and user program are set independently, for each display.
SLANT MODE SCAN
The slant mode provides a half-circle (180 degree) picture, with own ship at the center.
HORIZONTAL AND VERTICAL DISPLAY COMBINATION
A horizontal and two vertical scans can be displayed simultaneously.
By utilizing both scans, the skipper can locate a school of fish and its distribution in horizontal and vertical perspectives at the same time.
AUTO TARGET LOCK AND FISH HISTOGRAM FUNCTION
The echo target lock function automatically tracks the operator-selected fish school so you won't lose sight of it on the display.
The range and tilt are automatically controlled according to the fish position.
In addition, the fish histogram function shows, in graoh form, signal strength distribution for the school of fish marked with an estimate mark on the horizontal and echo sounder display.
In the histogram graph at the right side of the display, the horizontal axis shows signal strength in 16 colors, and the vertical axis shows the concentration of the school of fish inside the fish estimate mark.
Product advantages
- Time to fully lower the transducer is reduced from 28 seconds to 11 seconds with the newly designed hull unit which helps to avoid collisions with drifting objects
- Transducer position indicator is shown on the display which helps you to check how far the transducer is protruding
- The transducer can be lowered to the desired position until full protrusion. Thanks to this new function, it is possible to set protrusion to the minimum amount in situations where damage to the transducer is expected with drifting objects
- Maximum of 20 fish marks can be entered per mark type (fish mark 1 / fish mark 2)
Features
- Full-circle, multibeam electronic color scanning sonar
- Cylindrical and sphere transducer provides 90 degrees vertical detection
- School of fish can be searched from horizontal (range direction), vertical (depth direction) with vertical and half-circle features
- Function keys for direct access to desired menu item
- Dual display mode
- User programs for one-touch setup of the equipment
- Fish histogram shows signal strength distribution of echo with estimate mark
- Storage and replay of picture and settings
- Fish estimate feature to compare the volume of two schools of fish
- Pitching and rolling compensation for stable picture always
In the box
1x Transceiver unit
1x Control unit
1x Processor unit
1x Cable assembly
Parts and accessories
| 00853563000 | FLUSHMOUNT KIT FP03-09870 RCU-014/015/016 | NC |
| 00001921200 | FSV-853 SUB CONTROL UNIT | NC |
| 00159466000 | HDMI-TO-DVI-A-L10.3M CABLE ASSEMBLY 06S100540 | NC |
| 00140717000 | HDMI-TO-DVI-L=10.3M CABLE ASSEMBLY 02S10090 | NC |
| 00159467000 | HDMI-TO-DVI-A-L5.3M CABLE POUR ECRAN DEPORTE 06S100540 | NC |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| 00120854000 | SEM-21Q ALTOPARLANTE ESTERNO CONNETTORE JACK - | 90,00 € With VAT (20%) |
| 00119633010 | 10S2380 *10M* 5-PAIR CABLE 10S2380-1 | NC |
| 00119634010 | CAVO 20M PROCES/TRANSCE FSV75 10S2380 PROCESSORE/TRANSCEIVER PER FSV-75 | NC |
| 00119635010 | CAVO 30M PROCES/TRANSCE FSV75 10S2380 PROCESSORE/TRANSCEIVER PER FSV-75 | NC |
| 00119636010 | 10S2380 *40M* 5-PAIR CABLE 10S2380-1 | NC |
| 00119637010 | 10S2380 *50M* CABLE 5 PAIRES 10S2380-1 | NC |
| 00119638010 | 10S2380 *60M* 5-PAIR CABLE 10S2380-1 | NC |
| 00119639010 | 5-PAIR CABLE 10S2380 *100M* 10S2380-1 | NC |
| 00003624400 | CP10-10100 *10M* INSTALLATION MATERIALS PROCESSEUR->TRANSCEIVER | NC |
| 00003624500 | CP10-10110 CAVO LAN 15M FSV-75 TRA PROCESSORE-TRANSCEIVER PROCESSEUR->TRANSCEIVER | NC |
| 00003624600 | CP10-10120 CAVO LAN 30M FSV-75 TRA PROCESSORE-TRANSCEIVER PROCESSEUR->TRANSCEIVER | NC |
| 00003624700 | CP10-10130 *40M* INSTALLATION MATERIALS PROCESSEUR->TRANSCEIVER | NC |
| 00003624800 | CP10-10140 *50M* INSTALLATION MATERIALS PROCESSEUR->TRANSCEIVER | NC |
| 00003672200 | CP10-10150 INSTALLATION MATERIALS | NC |
| 00003830900 | Hull Unit, 1100mm stroke, with tank&10m transducer cable 10S2320, less dome | NC |
| 00004275300 | FSV-851C-MK2-80 TRANSCEIVER UNIT | NC |
| 00003828700 | FSV-8501-MK2-E-10 CONTROL UNIT | NC |
| 00004276100 | FSV-8503-MK2-E PROCESSOR UNIT | NC |
| 00016086210 | CABLE ASSEMBLY 10S2078-0 *8M* - | NC |
