MODEL 1815

Radars M Series Ref : IMD03492007

8.4" COLOR LCD RADAR

PRICE : 3 799,00 € With VAT (20%)

Find a dealer

Description

Fully Automatic Gain of MODEL 1815 for Simplified Use

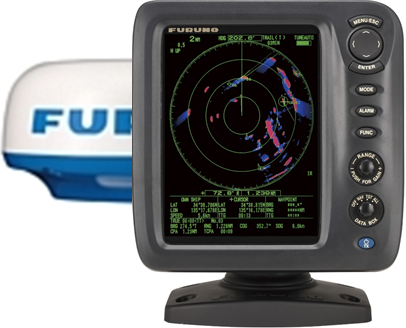

MODEL1815 is an 8.4'' color LCD radar designed for pleasure craft and small fishing boats. The Radar has easy-to-use, intuitive controls while maintaining the high performance you expect from FURUNO products. Even in poor visibility such as fog or storms, the radar produces detailed pictures of coastlines and targets at short ranges by utilizing narrow pulses and dual IF bandwidths. The waterproof display makes it ideal for exposed installations, such as fly bridges.

MODEL1815 utilizes our Fast Target Tracking™, True Trail Mode and True View Mode technologies to ensure optimum performance in detecting and ranging targets of interest.

Compact Radome antenna of MODEL 1815

Compact Radome antenna with 4 kW transmitter output power. Low power consumption of 38 W at the most.

Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter of MODEL 1815

To display targets clearly and accurately, the gain must adjusted. The MODEL1815 can do this automatically for you. By automatically adjusting the gain, the Radar eliminates unnecessary echoes and display a clear image.

Fast Target Tracking™ (TT) function and True Trail mode of 1815

Fast Target TrackingTM (TT) function manually or automatically acquires and tracks 10 targets. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessels' courses and speeds is made easier.

When using the True Trail mode, moving objects will show up on the main screen with a gradational trail. These trails make it possible to see the movement of nearby vessels in the blink of an eye.

AIS display

When connecting a FURUNO FA-30/50 AIS unit, up to 100 AIS targets can be tracked and displayed on the Radar screen. The AIS improves safety during travel by sharing the status and position of your vessel with other AIS-equipped vessels nearby. You can easily read detailed information about other AIS equipped vessels nearby, such as speed and heading.

True Trail mode

When using the True Trail mode, moving objects will show up on the main screen with a gradational trail. These trails make it possible to see the movement of nearby vessels in the blink of an eye.

* Heading data and positional data are required.

Multi-station configuration

The multi-station configuration allows up to three RDP-157 (MODEL1815 displays) to be connected to a single antenna, via an ethernet hub, without the need to install individual antenna units on each display. This configuration provides a cost saving and dynamic setup for situations requiring the ability to monitor the Radar from different locations on the ship.

Product advantages

Fully Automatic Gain for Simplified Use
Compact Radome antenna with 4 kW transmitter output power
Low power consumption of 38 W at the most
Easy installation and intuitive operation
Advanced auto-adjust settings for Gain/Sea clutter/Rain clutter
Fast Target Tracking (TT) function
AIS display
True Trail mode
True view mode
User-programmable function key
Swivel mounting bracket to adjust the angle of the display unit
Multi-station configuration

Features

ANTENNA

Peak Output Power: 4 kW

Type: 488 mm (19") radome

Frequency: 9410 MHz ± 30 MHz

Beam Width (Horizontal): 5.2°

Beam Width (Vertical): 25°

Range Scales: 0.0625 - 36 NM

Minimum Range: 25 m

Antenna Rotation Speed: 24 rpm

Weight: 6.5 kg 14.3 lb

DISPLAY

Display Unit: 8.4" color LCD

Display Mode: Head-up, Course-up*, North-up*, True view, True motion**

* Heading data required

** Heading data and position data required

Other Mode / Functions: Fast Target Tracking™ (TT), AIS, Echo Trails

Weight:

Bracket mount: 2.2 kg 4.9 lb

Flush mount: 1.6 kg 3.5 lb

ENVIRONMENT

Temperature:

Antenna unit: -25°C to +55°C

Display unit: -15°C to +55°C

Waterproofing:

Antenna unit: IPX6

Display unit: IP56

POWER SUPPLY

Power Supply / Consumption Current: 12-24 VDC, 3.2-1.6 A

Interconnection Diagram:

In the box

1 X Display Unit RDP-157
1 X Antenna Unit RSB-127-120
1 X Antenna Cable 10/15/20/30 m specify when ordering
1 X Power Cable 3.3 m
1 X Spare Parts & Installation Materials

Technical characteristics

Brightness : 600 cd/m2
NMEA0183 INPUT : 3
NMEA0183 OUTPUT : 2
Power : 4k W
Power input : 12/24 V
Range : 36 NM
Resolution : 640 x 480 Pixels
Screan size : 8,4
Size : 49 cm
Type : Radome
Waterproof : X6 IP

Parts and accessories

00002051000	IF-NMEA2K2 CONVERTITORE NMEA 0183/2000 BIDIREZIONALE 1 INGRESSO/USCITA - Replaced by 00003767000	319,00 € With VAT (20%)
00003009700	OP03-21 BUZZER ALLARME RADAR CICALINO ALLARME ESTERNO OP03-21	102,96 € With VAT (20%)
00001076500	FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 -	179,00 € With VAT (20%)
00146428000	OP03-242 FLUSH MOUNT KIT -	165,11 € With VAT (20%)
RM-RAM-101-FU1U	RAM-101-FU1U KIT MONT. PLAFOND POUR FCV588 ET 1815/15M POSSIBLE SUR FCV628	99,00 € With VAT (20%)
OMFR-906	MU MODEL 1815 Manuel d'utilisation Francais	NC
00137646000	FRU-2P5S-FF-10M CABLE EQUIPE 10M 03S002270 - Replaced by 00151260000	152,41 € With VAT (20%)
00151268000	FRU-2P5S-FF-30M-A	339,00 € With VAT (20%)
00137648000	FRU-2P5S-FF-15M CABLE ASSEMBLY 03S002270 - Replaced by 00151262000	145,00 € With VAT (20%)
00137649000	CABLE ASSEMBLY FRU-2P5S-FF-20M 03S002270 - Replaced by 00151264000	256,13 € With VAT (20%)
00137650000	CABLE ASSEMBLY FRU-2P5S-FF-30M 03S002270 - Replaced by 00151268000	378,38 € With VAT (20%)
00146427000	FRU-CF-FF-30M CABLE ASSEMBLY 03S00284	508,43 € With VAT (20%)
00148954000	FRU-CF-FF-10M CABLE EQUIPE 10M 03S00284	200,04 € With VAT (20%)
00148955000	FRU-CF-FF-15M CABLE EQUIPE 15M 03S00284	229,00 € With VAT (20%)
00148956000	FRU-CF-FF-20M CABLE EQUIPE 20M 03S00284	270,00 € With VAT (20%)
00151260000	FRU-2P5S-FF-10M-A CABLE 10M ALIM/ETHERNET	139,00 € With VAT (20%)
00151262000	FRU-2P5S-FF-15M-A	179,00 € With VAT (20%)
00151264000	CAVO ANTENNA DRS 20M X E NXT FRU-2P5S-FF-20M-A 20M PWR SUPPLY / LAN CABLE	229,00 € With VAT (20%)
00107835000	OP03-209 STAFFA MONTAGGIO PALO STAFFA PER ALBERO DRS2D/DRS4W	605,66 € With VAT (20%)
00003767000	IF-NMEA2K2 NMEA DATA CONVERTER 14S147356 CHINA	319,00 € With VAT (20%)
00001176200	HUB101 Hub Ethernet 8 ports 12-24Vcc Navnet (Fonction Power Synchronisation)	1 049,00 € With VAT (20%)
IMD03492010	8.4" COLOR LCD RADAR	1 899,00 € With VAT (20%)
RO-CMT1	COMPENSATEUR LIGNE DE FOI ROCMT1 POUR MAT ROTATIF 12VDC & 24VDC	1 379,00 € With VAT (20%)
SW-SM-24-U	SM-24-U PLATEFORME DE MAT POUR RADAR DE 49/61CM	739,44 € With VAT (20%)

00003480700	MODEL1815-E-15 MARINE RADAR 1SET	NC

00138446000	02-155-1061/62/63/64 SWIVEL MOUNTING BRACKET FCV-585	139,70 € With VAT (20%)
00131468000	03P9580(LF) MD-PWR PRINTED CIRCUIT BOARD CHINA	739,03 € With VAT (20%)
00102523000	DRS2D/4DL DOME-UPPER RADOME UPPER ASSEMBLY -	311,44 € With VAT (20%)
