FAR1523BB/24RPM
Radars FR & FAR series Ref : IMD03469000RADAR BLACK BOX NON-IMO 25 kW X-BAND
PRICE : NCDescription
Black Box configuration
Flexible Black Box configuration (monitor not included in the supply) adaptable to different types of installation. Compatible with any XGA SXGA resolution monitor.
FAST TARGET TRACKING™ (ARPA)
Target tracking™ (ARPA) has been improved by significantly reducing target acquisition time. All the new FAR-15XX series nautical radars include advanced ARPA 50 functionality thanks to which the marine radar is able to lock on targets automatically in a very few moments.
TARGET ANALYZER™
FAR-1523BB is equipped with Target Analyzer™ function. Targets approaching your vessel change color if detected on a collision course turning red, while targets moving away or stationary are displayed in green*.
* optional heading data is required
RADAR OVERLAY ON ECDIS AND MaxSea TIMEZERO
As with the FAR21x7 model, it is possible to overlay the radar echo and ARPA targets for the FAR-15X3 and FAR-15X8 models, both on the Furuno ECDIS and on the MaxSea navigation software (check compatible MaxSea versions). An ethernet connection between the two devices is sufficient.

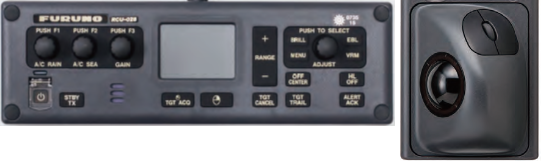

TOUCH PAD AND MOUSE OPERATION
Thanks to the completely redesigned control unit with integrated touch pad, you can perform operations on the machine easier and faster.
Product advantages
FAR15X3 and 15X8 series professional radars. Both models in the black box version guarantee versatile installations on both fishing and work boats. The 15X8 series differs from the 15X3 in that it complies with IMO regulations.
Features
The FAR1523 RADAR is a radar specially designed for the use of non-IMO professional ships with a power of 25Kw in X band.
2 radar antennas available: 6.5 feet or 8 feet
Presented in Black Box version -without display- it is possible to decline it in 2 screen sizes:
15 inch color with the MU-150HD display
19 inch color with MU190 display
Maximum scale: 96 NM
Integrated TARGET TRACKING function -50 targets-
Display of targets from an AIS -300 targets-
Possibility of interswitching 2 radars
Possibility of connection to an Ecdis for Overlay Radar
24V power supply
The FAR1523 professional radar range presents real advances in terms of improvements in target detection as well as in the ease of use of its user interface.
Available in 24 or 48 rpm version -optional-
In the box
1 x processor unit RPU-024
1 x control unit RCU-028
1 x antenna scanner unit
1 x standard installation material
Technical characteristics
Antenna Rotation Speed : 24 RPM
DVI OUTPUT : 1
Power : 25k W
Power input : 24 V
Range : 96 NM
Resolution : 1024 x 768 Pixels
RGB OUTPUT : YES
Size : 4/6 ft
Videos
Parts and accessories
| 00001363200 | PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT | NC |
| 00002515900 | PR-850A ALIMENTATION AC/DC FS2570-75/FS5070-75 | NC |
| RCU-030 | RCU-030 TRACKBALL CONTROL UNIT USB PER ECDIS & RADAR - | NC |
| 00003043900 | RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP | NC |
| 00003044300 | RU-3423 ALIMENTATION AC/DC 110/220VCC --> 24VCC 7A AC110/220V | 1 099,00 € With VAT (20%) |
| 00003049700 | RU-3424 ALIMENTATION AC/DC 220VAC--->24V | 2 222,64 € With VAT (20%) |
| HUB-100 | HUB-100 SWITCH RESEAU LAN FAR-28X7 | NC |
| 00113398010 | DVI-D/D S-LINK 10M CABLE EQUIPE DVI 10M 03S9658 | 829,00 € With VAT (20%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 61,40 € With VAT (20%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 82,00 € With VAT (20%) |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 115,00 € With VAT (20%) |
| 00124051000 | FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124052000 | FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124053000 | FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00854246000 | CP03-28901 CONNECTEUR | 59,53 € With VAT (20%) |
| 00002870100 | RSB-0073-087A-1 ANTENNA DRIVE UNIT FR8XXX/FAR1523/ | NC |
| 00002930400 | RCU-028-NI CONTROL UNIT | NC |
| 00003042000 | RU-1803 700DOT8-6 AC440V-AC110V | 1 333,58 € With VAT (20%) |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| 00015794310 | MJ-A3SPF0024-035C CABLE ASSEMBLY 08S0358-1 | NC |
| 00017895210 | TS-10-066 CABLE ASSEMBLY 02S100580 | NC |
| 00110362010 | RW-4864 *1M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00110363010 | RW-4864 *5M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00110364010 | RW-4864 *10M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00110365010 | RW-4864 *15M* 10 CORE MULTIPLE CABLE 13-3-4864 NON EQUIPE | NC |
| 00113296010 | DVI-D/D S-LINK 5M DVI-D/D S-LINK 5M 03S9657-4 | NC |
| 00157811000 | TM000-FDX06_TXRX_30M DVI/USB_REPEATER 86S000050 | NC |
| 00157812000 | TM000-FDX06_RX DVI/USB_REPEATER 86S000050 | NC |
| 00157813000 | TM000-FDX06_TX DVI/USB_REPEATER 86S000050 | NC |
| 00157814000 | WO2511 30M CABLE ASSEMBLY 86S000050 | NC |
| 00157815000 | WO2512 50M CABLE ASSEMBLY 86S000050 | NC |
| 00157816000 | WO2513 100M CABLE ASSEMBLY 86S000050 | NC |
| 00157817000 | TM000-FDX06_TXRX_50M DVI/USB_REPEATER 86S000050 | NC |
| 00157818000 | TM000-FDX06_TXRX100M DVI/USB_REPEATER 86S000050 | NC |
| 00157819000 | TM000-FDX06_TXRX DVI/USB_REPEATER 86S000050 | NC |
| 00158956000 | TS-10-068 CABLE ASSEMBLY 86S000070 | NC |
| 00107722010 | 3COX-2P-6C CAVO VGA RGB 10M 3COX-2P-6C 10M 10S2195 | 168,00 € With VAT (20%) |
| 00107723010 | 3COX-2P-6C CAVO VGA RGB 5M 3COX-2P-6C 5M 10S2195 | 67,68 € With VAT (20%) |
| 00142340000 | RW-00225 L10M CABLE ASSEMBLY 03S002250 - Replaced by 00159597000 | 530,65 € With VAT (20%) |
| 00142341000 | CABLE ASSEMBLY RW-00225 L15M 03S002250 - Replaced by 00159598000 | 558,44 € With VAT (20%) |
| 00142342000 | RW-00225 CAVO ANT 20M FAR-1523 RW-00225 L20M 03S002250 | NC |
| 00142343000 | RW-00225 CAVO ANT 30M FAR-1523 CABLE ASSEMBLY 03S002250 | NC |
| XN12A | XN12A | 1 359,00 € With VAT (20%) |
| XN13A | XN13A 6' (FR8065/FR8125/XCLASS/DRS12A) | 2 559,00 € With VAT (20%) |
| 00159597000 | RW-00225 L10M CABLE ASSEMBLY 03S002251 | NC |
| 00159598000 | RW-00225 L15M CABLE ASSEMBLY 03S002251 | NC |
| 00159599000 | RW-00225 L20M CABLE ASSEMBLY 03S002251 | NC |
| 00159600000 | RW-00225 L30M CABLE ASSEMBLY 03S002251 | NC |
| 00002870000 | RSB-0070-087A-1 AERIEN | NC |
| 00002885400 | RC28RP24-25KE2R2S-23 PROCESSEUR/UNITE DE CONTR� | NC |
| 00142857000 | RCU-028 PANEL PANEL ASSEMBLY - | 328,90 € With VAT (20%) |
| 00142868000 | 03P9547A(LF) SPU SPU ASSEMBLY - | 4 248,16 € With VAT (20%) |
| 00821061000 | RSB-0070/72/73 ROTARY JOINT ASSEMBLY - | 538,99 € With VAT (20%) |
| 00822043000 | RSB-0035/36/37/70/72 RADIATOR BRACKET /73/82/83/118 | 436,60 € With VAT (20%) |
| 00848449000 | 03-1906(REED SW-2P) ILS AVEC CONNECTEUR NH RSB-0070/72/73 - Replaced by 00149921000 | 71,45 € With VAT (20%) |
| 00855646000 | 03P9404B(LF) PRINTED CIRCUIT BOARD RTR-086/A/87/A | 1 175,22 € With VAT (20%) |
| 00857027000 | RU-9792 RTR085/86/87 MIC ASSEMBLY RTR059A/64A | 1 189,12 € With VAT (20%) |
| 00114622000 | 05-106-5611/12/13 DISTRESS SWITCH COVER ASSY FS-2575C | 79,12 € With VAT (20%) |
| 00116956000 | MU3955N1 BALL TAS4728N1 SP | 229,93 € With VAT (20%) |
| 00116957000 | MU3955N2 RING UNIT TAS4728N1 SP | 224,11 € With VAT (20%) |
| 00116958000 | MU3955N3 BALL&RING UNIT TAS4728N1 SP | 448,24 € With VAT (20%) |
| 00118312000 | RU-9792/9099 RTR085A MIC WITH DIODE LIMITER 086A/87A59A/64A | 1 801,93 € With VAT (20%) |
| 00118318000 | RT-9023 W/HARNESS PULSE TRANSFORMER ASSEMBLY RTR-087/A | 822,37 € With VAT (20%) |
| 00119462000 | 03-2350(10-10P) PH CONNECTOR ASSEMBLY | 41,68 € With VAT (20%) |
| 00128073000 | MU3955N4 BOARD RCU-030 SP | 142,88 € With VAT (20%) |
| 00128074000 | MU3955N5 TAPPING SCREWS RCU-030 | 43,66 € With VAT (20%) |
| 00128075000 | MU3955N6 SEMS SCREW RCU-030 | 43,66 € With VAT (20%) |
| 00132186000 | 03P9239B(LF) MD PRINTED CIRCUIT BOARD RTR-061/87/87A | 1 211,34 € With VAT (20%) |
| 00135276000 | 03P9238B(LF) RFC PRINTED CIRCUIT BOARD FR-8252 | 908,51 € With VAT (20%) |
| 00141692000 | 24-045(BUZZER-2P) BUZZER ASSEMBLY CHINA | 161,94 € With VAT (20%) |
| 00141701000 | 03-177-2034/#6601-P KNOB (W/D SPRING) CHINA - Replaced by 00160547000 | 65,35 € With VAT (20%) |
| 00142307000 | 03P9405B(LF)RTB *NEW PRINTED CIRCUIT BOARD RTR-087/A | 398,75 € With VAT (20%) |
| 00142312000 | 03P9576(LF) FIL *NEW PRINTED CIRCUIT BOARD RPU-023/024 | 769,58 € With VAT (20%) |
| 00142329000 | RTR-087A-1 RF MODULE | 6 229,74 € With VAT (20%) |
| 00142846000 | RPU-024 DC FIL DC FIL ASSEMBLY | 1 169,66 € With VAT (20%) |
| 00142849000 | 03P9547A(LF) SPU PLATINE SPU SEULE RPU-024 - Replaced by 00161716000 | 4 200,40 € With VAT (20%) |
| 00142853000 | 03P9601(LF) FRP_TB PRINTED CIRCUIT BOARD RPU-024 - Replaced by 00161719000 | 1 899,83 € With VAT (20%) |
| 00142854000 | SP03-18001 SPARE PARTS RPU-024(DC) | 27,78 € With VAT (20%) |
| 00142856000 | 03P9528B(LF) KEY PCB PLATINE RCU-028 - Replaced by 00161683000 | 625,12 € With VAT (20%) |
| 00142858000 | CP03-36601 INSTALLATION MATERIALS RCU-028 | 27,78 € With VAT (20%) |
| 00142862000 | 03P9497B(LF) PWR(DC) PRINTED CIRCUIT BOARD | 2 430,74 € With VAT (20%) |
| 00142870000 | 03P9497B(LF)PWR ASSY PWR ASSEMBLY (DC) RPU-024 | 2 807,81 € With VAT (20%) |
| 00149921000 | 03-1906(REED SW-2P) REED SWITCH W/NH-CONNECTOR RSB-0070/72/73 | 71,45 € With VAT (20%) |
| 00155364000 | TB5211 50G ADHESIVE | 47,63 € With VAT (20%) |
| 00160547000 | 03-177-2034 KNOB ASSEMBLY | 65,35 € With VAT (20%) |
| 00161431000 | RPU-024/027 DC FIL DC FIL ASSEMBLY CHINA 03P9576 | 1 169,66 € With VAT (20%) |
| 00161683000 | 03P9528B(LF) KEY PRINTED CIRCUIT BOARD CHINA RCU-028 | 625,12 € With VAT (20%) |
| 00161716000 | 03P9547A(LF) SPU PRINTED CIRCUIT BOARD CHINA RPU-024 | 4 200,40 € With VAT (20%) |
| 00161719000 | 03P9601(LF) FRP_TB PRINTED CIRCUIT BOARD CHINA RPU-024 | 1 899,83 € With VAT (20%) |
| 00848976000 | RSB-0070 (LESS RF) SCANNER ASSEMBLY (LESS RF) 24RPM | 4 412,74 € With VAT (20%) |
| 00848977000 | RSB-0073 (LESS RF) SCANNER ASSEMBLY (LESS RF) 48RPM | 4 939,02 € With VAT (20%) |
| 00852369000 | CP03-22901 INSTALLATION MATERIALS XN10A/12A/13A | 222,26 € With VAT (20%) |
| OMFR-904 | MU FAR15x3_15x8_BB Manuel d'utilisation Fran�?a | NC |
