FELCOM251
COMMUNICATION SATELITE SYSTEM Ref : IMD03440300Fleet Broad Band FURUNO - Standard IP 284 Kbps (Less antenna cable)
PRICE : NCDescription

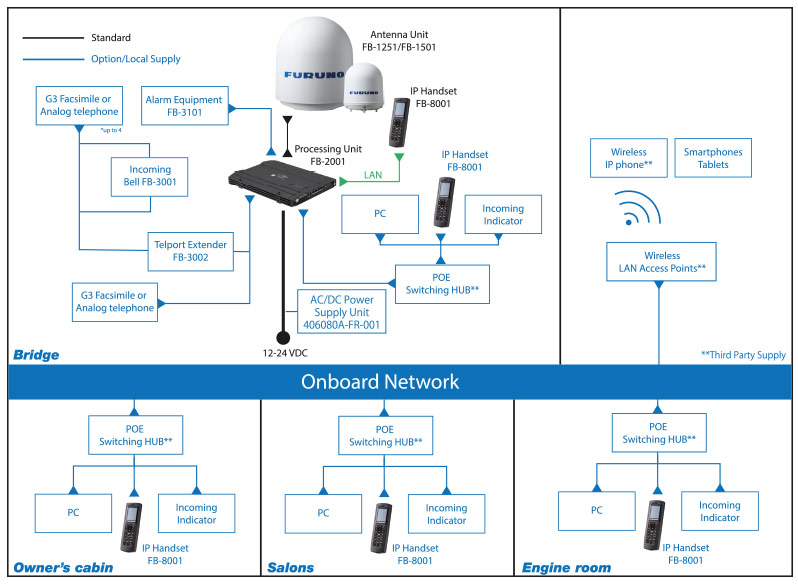

System Overview of FleetBroadband

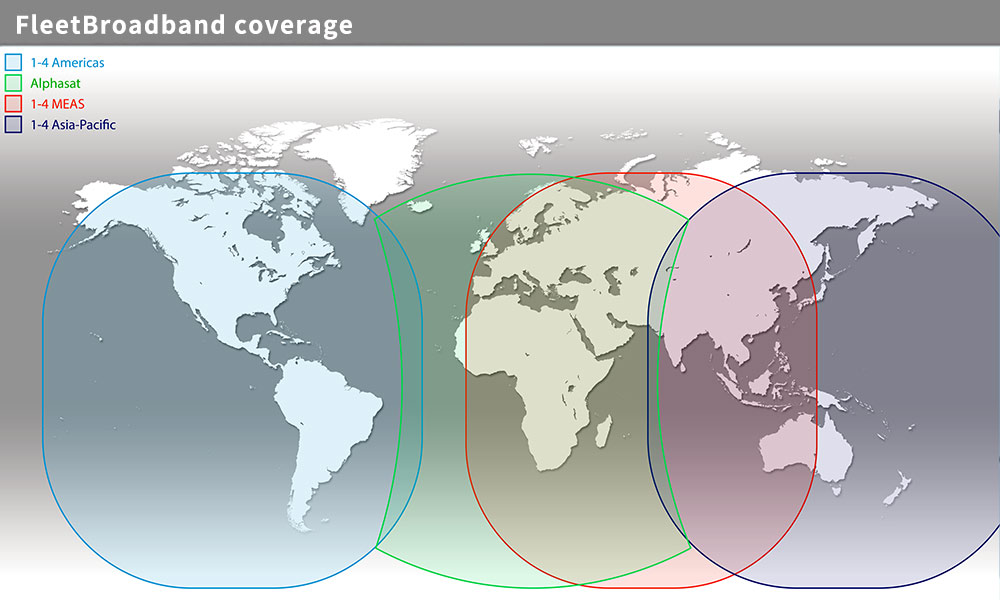

FleetBroadband coverage
- I4 satellite F1 PAC-W 143.5E: Covering Oceania, Western Pacific and South and East Asia.
- I4 satellite F2 IND-W 25E: Covering Western Asia, Africa and Eastern Atlantic.
- I4 satellite F3 PAC-E 98W: Covering Western Atlantic, Eastern Pacific and Americas.
Product advantages
FELCOM251 and FELCOM501 are FURUNO's latest Inmarsat FleetBroadband terminals, which delivers ship-to-shore/ ship-to-ship broadband communication of up to 432 kbps, anywhere at sea, by utilising the inmarsat Fleet Xpress system coverage. (coverage map below.)
In addition to data communication services (Standard IP of up to 432 kbps). FleetBroadBand allows the users to make use of ISDN data service* as well as FAX communication.
FELCOM251 and FELCOM501 will bring cost-effective broadband communication onboard the vessels for a variety of needs, for both operational and social purposes, including calling their friends and family back home while at sea.
* FELCOM501 only
Features
Inmarsat fleet broadband data coverage anywhere at sea
- Support the Inmarsat Fleet Xpress system
- Standard IP(Up to 432 kbps for FELCOM501)
- Streaming IP(Up to 256 kbps for FELCOM501)
- Satellite voice
- Enhanced voice services
- Crew calling
- GSM calls
- SMS
- Safety
- Fax
- Noise suppression function to improve the listening comfort in noisy environment
- Compact Communication Unit FB-2001 for easy installation
- High level of security settings (IP Filter, Firewall)
- Remote Maintenance Available
- Ample connection interface for retrofitting with existing systems and components
- Conforms to the following standards: Inmarsat Fleetbroadband SDM, IEC 60945 (Ed.4), IEC 60529 (Ed.2)
In the box
1 X communication unit FB-2001
1 X IP Handset FB-8001
1 X Antenna unit FB-1251
Technical characteristics
Brand : FURUNO
Connection Tel/fax : 4
Diameter : 410 mm
Function : Data/Voix/Sms
Height : 258 mm
Integrated GPS : YES
Maxi speed of transfer data : 284 kbps
NMEA0183 : 1
Power input : 12/24 V
Type : FLEET BROAD BAND
Weight : 6.5 Kg
Parts and accessories
| 00106731000 | CP16-04131 INSTALLATION MATERIALS | 1 011,30 € With VAT (20%) |
| 00154162000 | 403742A-920-FUR MAST MOUNT KIT | 1 005,74 € With VAT (20%) |
| 00154161000 | 406080A-001-FUR WALL MOUNT TRAY | 580,67 € With VAT (20%) |
| 00149332000 | 16-023-5501 SPLASH PROOF CAP | 92,88 € With VAT (20%) |
| 00125846000 | TN2210 TONER CARTRIDGE | 591,78 € With VAT (20%) |
| 00125844000 | DR2200 DRUM UNIT | 305,62 € With VAT (20%) |
| 00124055000 | LAN CABLE (4 PAIR) FR-FTPC-CY *100M* 19S1029-0 | NC |
| 00124054000 | FR-FTPC-CY CAVO LAN 50M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124053000 | FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124052000 | FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124051000 | FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00116790010 | LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 | 115,00 € With VAT (20%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 82,00 € With VAT (20%) |
| 00116788010 | LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 | 61,40 € With VAT (20%) |
| 00854246000 | CP03-28901 CONNECTEUR | 59,53 € With VAT (20%) |
| 00002487200 | FAX-2840 ENGLISH*CE FACSIMILE MACHINE COMPLETE SET | 4 391,30 € With VAT (20%) |
| 00003332500 | GEMINI 9333B4 TELEPHONE SET | 611,23 € With VAT (20%) |
| 00003420700 | GEMINI9333 PHONE FIXING BASE SET | 1 041,86 € With VAT (20%) |
| 00003481800 | FB-3001 INCOMING BELL | 966,85 € With VAT (20%) |
| 00003510800 | GEMINI9333 PHONE FIXING BASE SET TILTING TYPE | 505,66 € With VAT (20%) |
| 00003510900 | GEMINI 9333B4 TELEPHONE SET TILTING TYPE | 980,74 € With VAT (20%) |
| 00003587500 | FB-3101 ALARM PANEL 403771A-FUR | 1 219,67 € With VAT (20%) |
| 00003587600 | 406080A-FUR-001 AC/DC POWER SUPPLY 406080A-27001 | 1 741,07 € With VAT (20%) |
| 00003587800 | FB-3003 USB-RS232C CONVERTER 403738B-27982 | 398,75 € With VAT (20%) |
| 00016714010 | JOINT BOX TL-CAT-012 - | 19,00 € With VAT (20%) |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| 00003783000 | OP16-79 MODULAR JACK SET | 92,88 € With VAT (20%) |
| 00004322800 | OP16-13 SET JACK MODULARI PER FELCOM-251/501 | 92,88 € With VAT (20%) |
| 00004327200 | OP16-8 BOX JACK MODULARI PER FELCOM-251/501 | 43,66 € With VAT (20%) |
| 00004327800 | OP16-10 MODULAR JACK BOX(EXPOSED) FELCOM80/81 | 75,67 € With VAT (20%) |
| 00004327900 | OP16-11 MODULARJACKBOX(FLUSH) FELCOM80/81 | 63,50 € With VAT (20%) |
| IT-S2-3108 | I3 EMPTY DOME ANTENNA INTELLIAN | 889,00 € With VAT (20%) |
| IT-S2-4109 | DOME VUOTO I4/I4P INTELLIAN | 939,00 € With VAT (20%) |
| 00159594000 | 8D-FB-CV 30M ANTENNA CABLE ASSEMBLY 20S104691 | NC |
| 00116317010 | 8D-FB-CV CABLE EQUIPE 30M AVEC CONNECTEUR non rohs 20S104690 - Replaced by 00159594000 | 911,28 € With VAT (20%) |
| 00116319010 | 8D-FB-CV CAVO 50M ARMATO PER GPS/FELCOM/AIS 20S104690 - Replaced by 00159595000 | NC |
| 00116322010 | 8D-FB-CV 40M ANTENNA CABLE ASSEMBLY 20S104690 - Replaced by 00159593000 | 1 105,76 € With VAT (20%) |
| 00159593000 | 8D-FB-CV 40M ANTENNA CABLE ASSEMBLY 20S104691 | 1 105,76 € With VAT (20%) |
| 00159595000 | 8D-FB-CV 50M ANTENNA CABLE ASSEMBLY 20S104691 | 1 307,12 € With VAT (20%) |
| RO-00017 | CABLE ANTENNE 15 M D:5.4MM AVEC CONNECTEUR | 102,00 € With VAT (20%) |
| RO-00018 | CABLE ANTENNE 25 M D:10.8MM AVEC CONNECTEUR | 310,00 € With VAT (20%) |
| 00115811010 | 12D-SFA-LITE-CV 100M CABLE EQUIPE 16S0211 | 5 589,00 € With VAT (20%) |
| 00003623800 | FB-8001-E IP HANDSET FBB HANDSET W/CRADLE | NC |
| 00003586900 | FB-1251 W/O INST-MAT ANTENNA UNIT W/O INST-MAT 403050A-FUR-001 | NC |
| 00003587100 | FB-2001-251 W/O INST COMMUNICATION UNIT W/O INST 403738B-FUR-250 | NC |
| 00003624000 | CP16-06500 INSTALLATION MATERIALS FELCOM251 | NC |
| 00160095000 | S-82-152760-C ACCESSORIES KIT FB-2001/-F19 SP | 190,51 € With VAT (20%) |
| 00160075000 | S-41-204677-265 TIMING BELT FB-1251 SP | 123,83 € With VAT (20%) |
| 00160163000 | FB-8001-E HANDSET FB-8001 | 2 400,59 € With VAT (20%) |
| 00160161000 | FB-8001 CRADLE ASSEMBLY FB-8001 | 227,03 € With VAT (20%) |
| 00160117000 | S-34-201823-035 THERMAL PASTA FB-1251/1501 SP | 291,06 € With VAT (20%) |
| 00160098000 | S-87-146129-B WIRE LID COVER PSU SP | 212,74 € With VAT (20%) |
| 00160097000 | S-37-207267-001 CABLE ASSEMBLY RJ11 6P4C FB-3002 SP | 209,57 € With VAT (20%) |
| 00160096000 | S-60-151922 PSU PRINTED CIRCUIT BOARD FB-2001/-F19 SP | 2 182,96 € With VAT (20%) |
| 00160086000 | S-67-127759 RADOME BOTTOM FB-1251 SP | 1 479,12 € With VAT (20%) |
| 00160077000 | S-60-134200 HPA PRINTED CIRCUIT BOARD FB-1251/1501 SP | 4 584,19 € With VAT (20%) |
| 00160078000 | S-60-137189-S250 ACM PRINTED CIRCUIT BOARD FB-1251 SP | 1 674,92 € With VAT (20%) |
| 00160079000 | S-60-143908 GENERIC GNSS MODULE FB-1251/1501 SP | 700,13 € With VAT (20%) |
| 00160080000 | S-62-166040 RADOME TOP W/FURUNO MARK FB-1251 SP | 4 554,83 € With VAT (20%) |
| 00160081000 | S-67-166041 RADOME TOP LESS FURUNO MARK FB-1251 SP | 3 406,07 € With VAT (20%) |
| 00160082000 | S-62-127181 ASSEMBLED BELT TENSIONER FB-1251 SP | 203,21 € With VAT (20%) |
| 00160083000 | S-62-134236 DLNA PRINTED CIRCUIT BOARD FB-1251 SP | 1 299,19 € With VAT (20%) |
| 00160084000 | S-62-137388 ELECTRONIC COVER FB-1251 SP | 6 984,65 € With VAT (20%) |
| 00160085000 | S-67-127067 MOUNTING KIT FB-1251 SP | 358,01 € With VAT (20%) |
| 00160076000 | S-48-121639-A WARNING LABEL FB-1251 SP | 120,66 € With VAT (20%) |
| 00160087000 | S-67-127760 LITTLE SCREW KIT FB-1251 SP | 161,94 € With VAT (20%) |
| 00160088000 | S-67-127761 BIG SCREW KIT FB-1251 SP | 161,94 € With VAT (20%) |
| 00160089000 | S-67-130233 RADOME SCREW KIT FB-1251 SP | 161,94 € With VAT (20%) |
| 00160090000 | S-67-139867 MOTOR KIT FB-1251 SP | 616,79 € With VAT (20%) |
| 00160091000 | S-31-204325-108 CONN. CABLE FB-2001/-F19 SP | 149,23 € With VAT (20%) |
| 00160092000 | S-37-125066 POWER SWITCH ASSY FB-2001/-F19 SP | 187,33 € With VAT (20%) |
| 00160093000 | S-37-125999-A POWER CABLE FB-2001/-F19 SP | 253,22 € With VAT (20%) |
| 00160094000 | S-41-152759-A SIM CARD COVER FB-2001/-F19 SP | 99,76 € With VAT (20%) |
