(150 m range) Schools of tuna and skipjack tuna spotted.

(300 m range) Two schools of fish can be seen right after the purse-line has been pulled and the net has been closed.

(400 m range) Individual bigeye tuna can be seen in this fish school.

(600 m range) Increase your catch by observing how schools of fish move within your net.

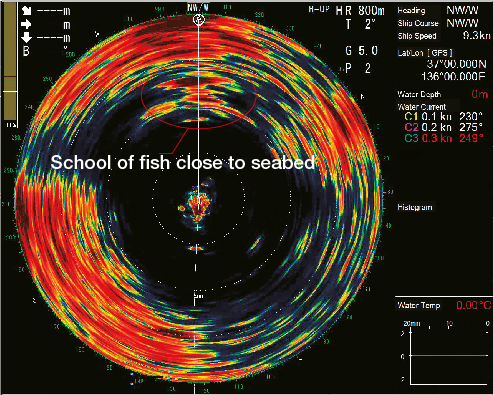

(800 m range) A school of fish close to the seabed can be distinguished clearly.

(1000 m range) Targeted school of fish 650 meters away.

(3000 m range) A school of fish 2000 m ahead. The fish school appears to swim close to a reef.

(5000 m range) A school of bait fish can be seen on the port side of the vessel.

FSV25MARK-2

Fishing sonars Ref : IMD0403800B

Black Box Full-circle Scanning Sonar 20 kHz

PRICE : NC

Find a dealer

Description

Maximum detection range increased by 30%

Thanks to recent advancements in low-frequency transducer elements, signal processing and increased transmission power, detection range has been increased by a full 30%*. You can instantly spot and follow schools of fish from several kilometers away.
*Compared with FSV-24/35. Performance may vary depending on depth, range and signal frequency used.

Improved resolution with new signal compression algorithms

Left image: (150 m range) Schools of tuna and skipjack tuna spotted.
Right image: (400 m range) Individual bigeye tunas can be seen in this school of fish.

Graphical hull-unit indicator

See exactly how much the transducer is lowered directly on your display with a simple graphical interface. Instantly spot if and how much the transducer is lowered or retracted, helping you avoid accidents and increase the safety at sea.

Sonar echo overlay on the TZ Professional

The new feature enhances its usability and should strongly assist customers in a variety of ways including grasping entire fishing ground by overlaying sonar image on chart plotter software: TZ Professional

Product advantages

Maximum detection range increased by 30%
Improved resolution with new signal compression algorithms
Graphical hull-unit indicator
Fully extend the transducer in just 12 seconds for 1200 mm stroke and in 16 seconds for 1600 mm stroke
Stop function when extending and retracting transducer
Stabilization function for unwavering performance
Automatically track schools of fish with target lock function
Accurate control with large physical control unit
Auto filter for clear and uninterrupted performance
Wired Remote and Sub Control Unit available
Maximum of 20 fish marks can be entered per mark type (fish mark 1 / fish mark 2)
Brilliance control knob for MU-series monitors is added to the new control unit

Features

Stunning performance, amazing range with FSV-25 MARK-2!

In the box

1 X Processor Unit FSV-2503-MK2
1 X Control Unit FSV-8501-MK2
1 X Transceiver Unit FSV-251-MK2
1 X Power Supply Unit FSV-252
1 X Junction Box FSV-2550-MK2
1 X Cable Assembly (Transceiver and Junction box)
1 X Cable Assembly (Transceiver and raise/lower control box)
1 X Installation material

Videos

3D SonarVisualizer | Visualizzazione in 3D dell'immagine sonar Furuno

3D SonarVisualizer F3D-S

3D SonarVisualizer | Visualizzazione in 3D dell'immagine sonar Furuno

3D SonarVisualizer F3D-S

Parts and accessories

00002510500	FSV-2560 CONTROL BOX EXTENSION BOX	NC
00694353000	OP10-24 (FOR FSV-24) ATTACHMENT KIT FSV-247/248	NC
00159467000	HDMI-TO-DVI-A-L5.3M CABLE POUR ECRAN DEPORTE 06S100540	NC
00159466000	HDMI-TO-DVI-A-L10.3M CABLE ASSEMBLY 06S100540	NC
00159445000	OP86-11 KIT FERRITI PR241 DUAL PER CONFIGURAZIONE 2X PR-241 PR-241	146,06 € With VAT (20%)
00140718000	HDMI-TO-DVI-L=5.3M CABLE EQUIPE - - Replaced by 00147145000	NC
00140717000	HDMI-TO-DVI-L=10.3M CABLE ASSEMBLY 02S10090	NC
00132479000	S10-20-20 CABLE ASSEMBLY CHINA	NC
00126963000	OP10-40 RETRACTION TANK	NC
00126962000	OP10-44 ATTACHMENT FLANGE	NC
00126961000	OP10-43 ATTACHMENT FLANGE	NC
00126960000	OP10-39 ATTACHMENT FLANGE	NC
00126959000	OP10-38 ATTACHMENT FLANGE	NC
00126958000	OP10-42 ATTACHMENT FLANGE	NC
00126957000	10CA10053 20M CABLE ASSEMBLY 10S100530	NC
00120854000	SEM-21Q ALTOPARLANTE ESTERNO CONNETTORE JACK -	90,00 € With VAT (20%)
00001921200	FSV-853 SUB CONTROL UNIT	NC
00003782000	PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM	NC

00119634010	CAVO 20M PROCES/TRANSCE FSV75 10S2380 PROCESSORE/TRANSCEIVER PER FSV-75	NC
00003624400	CP10-10100 10M INSTALLATION MATERIALS PROCESSEUR->TRANSCEIVER	NC
00003624500	CP10-10110 CAVO LAN 15M FSV-75 TRA PROCESSORE-TRANSCEIVER PROCESSEUR->TRANSCEIVER	NC
00003624600	CP10-10120 30M INSTALLATION MATERIALS PROCESSEUR->TRANSCEIVER	NC
00003624700	CP10-10130 40M INSTALLATION MATERIALS PROCESSEUR->TRANSCEIVER	NC
00003624800	CP10-10140 50M INSTALLATION MATERIALS PROCESSEUR->TRANSCEIVER	NC
00003672200	CP10-10150 INSTALLATION MATERIALS	NC
00003854800	FSV-253-MK2-T HULL UNIT	NC
00003855000	FSV-254-MK2-T HULL UNIT 1600MM FSV25MK2	NC
00119639010	5-PAIR CABLE 10S2380 100M 10S2380-1	NC
00119638010	10S2380 60M 5-PAIR CABLE 10S2380-1	NC
00119637010	10S2380 50M CABLE 5 PAIRES 10S2380-1	NC
00119636010	10S2380 40M 5-PAIR CABLE 10S2380-1	NC
00119635010	10S2380 30M CABLE 5 PAIRES FSV25/FSV35/FSV85/CSH10	NC
00119633010	10S2380 10M 5-PAIR CABLE 10S2380-1	NC

00003854600	FSV-2550-MK2 JUNCTION BOX	NC
00003854100	FSV-251-MK2 TRANSCEIVER UNIT	NC
00003853300	FSV-2503-MK2-E PROCESSOR UNIT	NC
00003828700	FSV-8501-MK2-E-10 CONTROL UNIT	NC
00126956000	10CA10053 10M CABLE EQUIPE	NC
00132478000	S10-20-10 CABLE EQUIPE	NC
00004270500	FSV-252A POWER SUPPLY UNIT	NC
