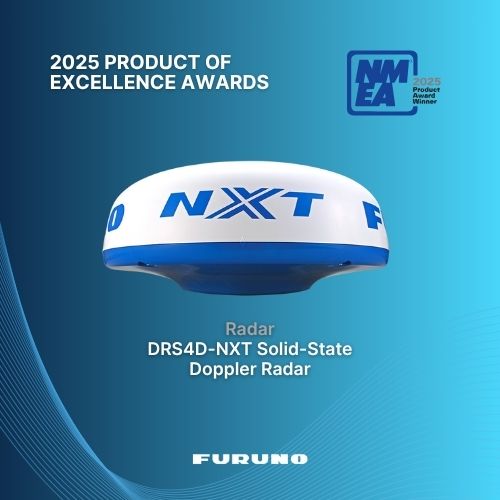

DRS4D-NXT
Radars Antennas Ref : IMD0345600124" Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking for NavNet TZtouch, TZtouch2, and TZtouch3, less cable.
PRICE : 3 799,00 € With VAT (20%)Description
Target Analyzer™ function utilizing Doppler technology spots hazardous targets instantly
Rain mode
When the “Rain mode” is on, rain echoes are shown in blue. This mode is particularly useful as it has the capability to detect targets masked by rain clutters.
Fast Target Tracking and Auto Target Acquire function
With Fast Target Tracking™ activated, it only takes a few seconds for a vector to be displayed once the target is selected, manually or automatically with the Auto Target Acquire function.
When the Auto Target Acquire function is on, approaching targets within 3NM range from own ship, which are potentially hazardous, are automatically acquired by Doppler calculation and will trigger an alarm.
Together, Up to 100 targets can be acquired simultaneously, increasing considerably the safety and simplifying estimation of other vessel's course and speed.
Bird Mode
DRS6A-NXT and DRS4D-NXT feature a new Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird mode adjusts the gain and sea settings automatically for optimal visibility.
RezBoost beam sharpening
FURUNO's exclusive RezBoost™ technology has been incorporated into our Radar units for enhanced resolution and impressive performance. With RezBoost™ set to MAX, the sharpness offers an incredibly detailed image with more targets and less clutter.
Product advantages
- Solid-State Technology
- Target Analyzer
- Funzione RezBoost
- Fast Target Tracking (ARPA)
- Bird mode
Features
In the box
1 x Radar Sensor RSB-135-115
1 x Installation Materials
Spare Parts
Technical characteristics
Antenna Rotation Speed : 24/36/48 RPM
Beam : 3.9 °
Functions : Target Analyser + RezBoost + Bird Mode
Power : 25 W
Power input : 12/24 V
Range : 48 NM
Size : 24''
Solid-State : Solid-State
Type : Radome
Weight : 7.3 Kg
Videos
Parts and accessories
| 00107834000 | OP03-208 RADOME MOUNT | 772,37 € With VAT (20%) |
| 00142625000 | OP03-239 | 30,00 € With VAT (20%) |
| 00152404000 | OP03-259-4 EMC MODIFICATION KIT L=30M | 572,33 € With VAT (20%) |
| 00152403000 | OP03-259-3 EMC MODIFICATION KIT L=20M | 468,61 € With VAT (20%) |
| 00152402000 | OP03-259-2 EMC MODIFICATION KIT L=15M | 404,57 € With VAT (20%) |
| 00152401000 | OP03-259-1 EMC MODIFICATION KIT L=10M | 340,54 € With VAT (20%) |
| RO-CMT1 | COMPENSATEUR LIGNE DE FOI ROCMT1 POUR MAT ROTATIF 12VDC & 24VDC | 1 379,00 € With VAT (20%) |
| SW-PMA-57-M1 | PMA-57-M1 SUPPORT MODULAIRE INCLINAISON ARRIERE DE 5 "127 MM, BASE 7""X 7""" | 317,78 € With VAT (20%) |
| SW-ADA-R1 | ADA-R1 PLATINE MODULAIRE TOUT RADOME ET RADAR POUTRE | 254,52 € With VAT (20%) |
| SW-SM-18-U | SM-18-U PLATEFORME DE MAT POUR RADAR DE 38/45 CM | 653,52 € With VAT (20%) |
| 00151260000 | FRU-2P5S-FF-10M-A CABLE 10M ALIM/ETHERNET | 139,00 € With VAT (20%) |
| 00151268000 | FRU-2P5S-FF-30M-A | 339,00 € With VAT (20%) |
| 00163287000 | FRU-2P5S-FF-05M-A CABLE ASSEMBLY | 142,88 € With VAT (20%) |
| 00151264000 | CAVO ANTENNA DRS 20M X E NXT FRU-2P5S-FF-20M-A 20M PWR SUPPLY / LAN CABLE | 229,00 € With VAT (20%) |
| 00151262000 | FRU-2P5S-FF-15M-A | 179,00 € With VAT (20%) |
| 00137646000 | FRU-2P5S-FF-10M CABLE EQUIPE 10M 03S002270 - Replaced by 00151260000 | 152,41 € With VAT (20%) |
| 00137648000 | FRU-2P5S-FF-15M CABLE ASSEMBLY 03S002270 - Replaced by 00151262000 | 145,00 € With VAT (20%) |
| 00137649000 | CABLE ASSEMBLY FRU-2P5S-FF-20M 03S002270 - Replaced by 00151264000 | 256,13 € With VAT (20%) |
| 00137650000 | CABLE ASSEMBLY FRU-2P5S-FF-30M 03S002270 - Replaced by 00151268000 | 378,38 € With VAT (20%) |
| 00134182000 | CABLE ASSEMBLY MOD-ASW0001-200+ 19S1127-1 | 100,80 € With VAT (20%) |
| 00134166000 | MOD-ASW0001-100+ MOD-ASW0001-100+ 19S1127-1 | 60,00 € With VAT (20%) |
| 00003671600 | DRS4D-NXT-E RADAR SENSOR | NC |
| 00142611000 | 03-2479(REED SW-2P) REED SWITCH ASSEMBLY DRS4D-NXT | 37,04 € With VAT (20%) |
| 00143464000 | RTR-115 SPU COVER SPU COVER ASSEMBLY DRS4D-NXT | 187,33 € With VAT (20%) |
| 00143456000 | 03P9603(LF) SPU PRINTED CIRCUIT BOARD DRS4D-NXT - Replaced by 00161975000 | 1 960,69 € With VAT (20%) |
| 00162008000 | 03P9602(LF) TRX TRX BASE ASSEMBLY CHINA DRS4D-NXT | 2 034,78 € With VAT (20%) |
| 00161975000 | 03P9603(LF) SPU PRINTED CIRCUIT BOARD CHINA DRS4D-NXT | 1 960,69 € With VAT (20%) |
| 00143457000 | 03P9602(LF) TRX TRX BASE ASSEMBLY DRS4D-NXT | 2 034,78 € With VAT (20%) |
| 00143458000 | DRS4D-NXT DOME-LOWER RADOME LOWER ASSEMBLY CHINA | 522,32 € With VAT (20%) |
| 00143459000 | DRS4D-NXT DOME UPPER RADOME UPPER ASSEMBLY CHINA | 410,40 € With VAT (20%) |
| 00143461000 | CP03-37001 INSTALLATION MATERIALS DRS4D-NXT | 39,70 € With VAT (20%) |
| 00103114000 | RM-9794 DC GEARED MOTOR DRS2D/4D | 589,00 € With VAT (20%) |
| 00143462000 | RTR-115 W-GUIDE WAVEGUIDE ASSEMBLY DRS4D-NXT | 261,96 € With VAT (20%) |
| 00143463000 | RTR-115 RADIATOR RADIATOR ASSEMBLY WITH BASE DRS4D-NXT | 1 539,97 € With VAT (20%) |
