Antenna Rotation Speed
Power
Range
Size
Description
Automatic Clutter Elimination (ACE)
Users can quickly adjust the radar image with a single action. When Automatic Clutter Elimination (ACE) function is activated, the system automatically adjusts the clutter reduction filter and gain control according to the sea and weather conditions selected (Calm/Rough Sea/Hard Rain).
Our advanced echo averaging architecture is also incorporated into Automatic Clutter Elimination (ACE) function. Users can avoid complicated adjustment processes, resulting in clear echo images.
Improved Target Tracking (TT) Function

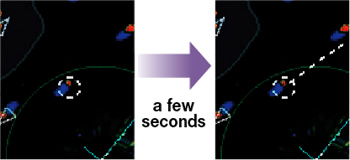

- Target acquisition takes only a few seconds
- Acquired target does not jump to adjacent target
- Reliable and stable tracking of high-speed and rapidly maneuvering vessels
Multifunction display (MFD) capability
FURUNO offers workstations that combine flexibility and redundancy. Users may easily select ECDIS, Chart Radar, Conning display or Alert Management System at any multi-function display. Navigators will enjoy reduced workload and significant freedom to move about the bridge. All necessary information is available on a variety of displays and at locations that may be altered as required.
*Conning Information Display requires optional license key
Advanced User Inteface

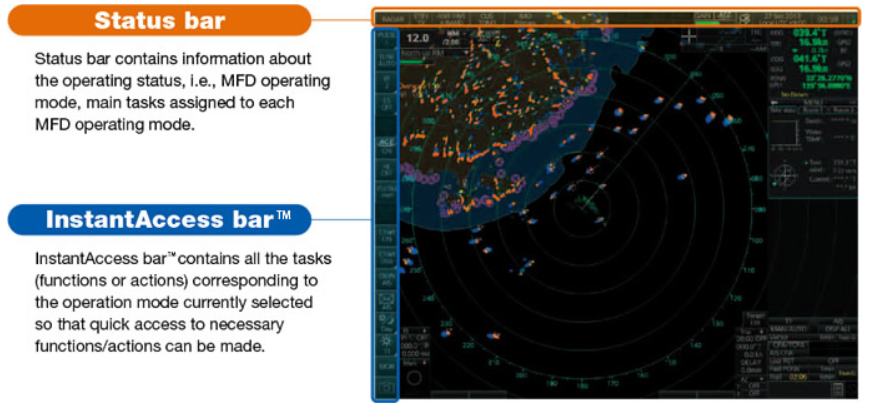

The user interface of the Radar utilizes carefully organized operational tools: The Status bar and The InstantAccess bar™.
These operational tools deliver straightforward, task-based operation by which the operator can quickly perform tasks without having to navigate an intricate menu tree.
Product advantages
- Solid State transceiver available for 30 kW
- Automatic Clutter Elimination (ACE)
- Multifunction display (MFD) capability
- Advanced User Interface
Features
Newly designed antenna scanners to suppress the aerodynamic drag and prevent a spike in temperature
Less maintenance required through use of the DC brushless motor
Ethernet network link between antenna unit and below deck processor unit
The analog signals are converted into the digital signals within the antenna unit and sent to the below deck processor unit via Ethernet network. This network technology eliminates loss of signal gain between antenna unit and processor unit that may be seen in conventional Radar system.
Optional LAN Signal Converter enables users to extend the cable between antenna unit and processor unit or to utilize the existing cables when retrofitting
In the box
1 x Processor Unit
1 x Control Unit
1 x Scanner Unit
Technical characteristics
Antenna Rotation Speed : 24/42 RPM
DVI OUTPUT : 3
Power : 30k W
Power input : 100-230 V
Range : 96 NM
Resolution : 1280 x 1024/1600 x 1200/1920 x 1200 Pixels
Size : 12 ft
Parts and accessories
| 00120415000 | DVI-BNCX5-L2000 CABLE ASSEMBLY 24S104180 | 360,91 € With VAT (20%) |
| 00124052000 | FR-FTPC-CY CAVO LAN 20M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00124051000 | FR-FTPC-CY CAVO LAN 10M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00123532000 | SP24-00801(BOX) SPARE PARTS HUB-3000 | NC |
| 00120807000 | CP24-02920(30M) INSTALLATION MATERIALS | NC |
| 00120806000 | CP24-02910(20M) INSTALLATION MATERIALS | NC |
| 00120805000 | CP24-02900(10M) INSTALLATION MATERIALS | NC |
| 00120790000 | DSUB9P-X2-L10M-WP CABLE ASSEMBLY 24S10419 | NC |
| 00120789000 | DSUB9P-X2-L5M-WP CABLE ASSEMBLY 24S10419 | NC |
| 00120692000 | CRIMPING TOOL FMD3100/VDR CRIMPFOX 10S 24H000550 | NC |
| 00124053000 | FR-FTPC-CY CAVO LAN 30M ARMATO SENZA CONNETTORI RJ45 19S1029-0 | NC |
| 00118830000 | OP24-32 CABLE ASSEMBLY | NC |
| 00118827000 | DSUB9P-X2-L10M CABLE ASSEMBLY 24S103930 | NC |
| 00118826000 | DSUB9P-X2-L5M CABLE ASSEMBLY 24S103930 | NC |
| 00118750010 | MC1.5-W-L3000 CABLE 24S103881 | NC |
| 00118749010 | MC1.5-W-L2000 CABLE 24S103881 | NC |
| 00118748010 | CABLE MC1.5-W-L1000 24S103880 24S103881 | 43,66 € With VAT (20%) |
| 00001363200 | PR-240 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT | NC |
| 00118634010 | CABLE ASSEMBLY 6TPSH-XH12X2-L30SP2 24S103894 | 1 055,88 € With VAT (20%) |
| 00125991000 | S03-92-40(8P) RW-00136 40M W/VH8 CONNECTOR 03S001360 | NC |
| EXU00001007 | CONNING FUNCTION ACTIVATE FILE - FAR-3xxx FCR-2xx9 | NC |
| 00854246000 | CP03-28901 CONNECTEUR | 59,53 € With VAT (20%) |
| WV-100 WAVE ANALYZER | WV-100 WAVE ANALYZER SOFTWARE WAVE ANALYZER SOFTWARE | NC |
| 00152272000 | TET-16-045A-5(L30M) CABLE ASSEMBLY 24S104940 | NC |
| 00152271000 | TET-16-045A-4(L20M) CABLE ASSEMBLY 24S104940 | NC |
| 00152270000 | TET-16-045A-3(L10M) CABLE ASSEMBLY 24S104940 | NC |
| 00152269000 | TET-16-045A-2(L5M) CABLE ASSEMBLY 24S104940 | NC |
| 00125992000 | S03-92-50(8P) RW-00136 50M W/VH8 CONNECTOR 03S001360 | NC |
| 00118747010 | MC1.5-W-L600 CABLE 24S103881 | NC |
| 00125990000 | S03-92-30(8P) RW-00136 30M W/VH8 CONNECTOR 03S001360 | NC |
| 00125989000 | S03-92-15(8P) RW-00136 15M W/VH8 CONNECTOR 03S001360 | NC |
| 00125441000 | OP03-224-3 CABLE EXTENSION KIT RSB-128 | NC |
| 00125438000 | CONVERTITORE LAN-COAX RSB-128 PER FAR-3210/3220 OP03-223-3 LAN SIGNAL CONVERT | NC |
| 00125433000 | DE-ICER KIT FAR2238/FAR3230 OP03-227 DE-ICER KIT RSB-129/133 | NC |
| 00125432000 | DE-ICER KIT FAR2218/FAR3210 OP03-226 DE-ICER KIT RSB-128 | NC |
| 00125259000 | DSUB9P-X2-A-L10M CABLE ASSEMBLY 24S104360 | 334,72 € With VAT (20%) |
| 00125258000 | DSUB9P-X2-A-L5M CABLE ASSEMBLY 24S104360 | NC |
| 00002761900 | RCU-026 TRACKBALL CONTROL UNIT PER ECDIS FMD-3200 MIC | NC |
| 00003763600 | RCU-024B CONTROL UNIT ECDIS ECDIS CONTROL UNIT CHINA | NC |
| 00118633010 | CABLE ASSEMBLY 6TPSH-XH12X2-L20SP2 24S103894 | 655,20 € With VAT (20%) |
| 00003049700 | RU-3424 ALIMENTATION AC/DC 220VAC--->24V | 2 222,64 € With VAT (20%) |
| 00003045600 | RU-5693 STEPUP TRANSFORMER UNIT AC110V-AC220V | NC |
| 00003045300 | STEP DOWN TRANSFORMER RU-5466-1 AC440V-AC220V | 1 372,80 € With VAT (20%) |
| 00003044800 | RU-3305 FOR DE-ICER TRANSFORMER UNIT - | 1 161,32 € With VAT (20%) |
| 00003043900 | RU-1746B2 ALIMENTATION AC/DC 220VAC --> 24VCC 13 AMP | NC |
| 00003042000 | RU-1803 700DOT8-6 AC440V-AC110V | 1 333,58 € With VAT (20%) |
| 00003041000 | STEP-DOWN TRANSFORMER RU-6522 220V 50KHZ FR1222/1622X | NC |
| 00003551400 | RCU-024B UNITE DE CONTROLE - Replaced by 00003763600 | NC |
| HUB-3000 | HUB-3000 INTERSWITCH/HUB INTELLIGENT HUB - | NC |
| 00002060000 | RCU-026 TRACKBALL CONTROL UNIT - Replaced by 00002761900 | NC |
| 00002059000 | RCU-024 UNITE DE CONTROLE - - Replaced by 00003763600 | 2 320,14 € With VAT (20%) |
| 00002052100 | MC-3030D ADATTATOR DIGITAL OUT SENSOR ADAPTER DIGITAL OUT - | NC |
| 00002052000 | MC-3020D ADATTATORE DIGITAL IN SENSOR ADAPTER DIGITAL IN - | NC |
| 00002051900 | MC-3010A ADATTATORE ANALOGICO SENSOR ADAPTER ANALOG - | NC |
| 00002051800 | MC-3000S ADATTATORE SERIALE SENSOR ADAPTER SERIAL - | NC |
| 00001627000 | MU190HD bracket | 1 152,00 € With VAT (20%) |
| 00118629010 | 6TPSH-XH12X2-L30SP1 CABLE ASSEMBLY 24S103894 - Replaced by 00152272000 | NC |
| 00118627010 | 6TPSH-XH12X2-L10SP1 CABLE ASSEMBLY 24S103894 | NC |
| 00118626010 | 6TPSH-XH12X2-L5.0SP1 CABLE EQUIPE 24S103894 - Replaced by 00152269000 | 136,54 € With VAT (20%) |
| 00116789010 | MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB | 82,00 € With VAT (20%) |
| 00113398010 | DVI-D/D S-LINK 10M CABLE EQUIPE DVI 10M 03S9658 | 829,00 € With VAT (20%) |
| 00113296010 | DVI-D/D S-LINK 5M DVI-D/D S-LINK 5M 03S9657-4 | NC |
| 00111675000 | OP26-17 KIT MONTAGGIO INCASSO PER MU-231 MU-231 | NC |
| 00111674001 | OP26-16 HOOD ASSEMBLY MU-231/NEW | NC |
| 00003782000 | PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Replaced by 000037820NM | NC |
| 00118628010 | 6TPSH-XH12X2-L20SP1 CABLE ASSEMBLY 24S103894 - Replaced by 00152271000 | NC |
| 00118631010 | 6TPSH-XH12X2-L5.0SP2 CABLE ASSEMBLY 24S103894 | NC |
| 00111674000 | OP26-16 HOOD ASSEMBLY MU-231 - Replaced by 00111674001 | NC |
| 00111673000 | OP26-15 STAFFA PER MU-231 KIT MONTAGGIO SU STAFFA TAVOLO MU-231 | NC |
| 00111628000 | OP26-12 KIT ENCASTREMENT MU190_MU192 ENCASTREMENT PAR ARRIERE | 224,64 € With VAT (20%) |
| 00108093000 | HOOD ASSEMBLY OP26-6 MU-190HD/190 | 779,00 € With VAT (20%) |
| 00008335500 | RJB-001 JUNCTION BOX RADAR PER CAVI RADAR - | NC |
| HUB-100 | HUB-100 SWITCH RESEAU LAN FAR-28X7 | NC |
| 00118632010 | 6TPSH-XH12X2-L10SP2 CABLE ASSEMBLY 24S103894 | NC |
| 00125988000 | RW-00135-L50M CABLE EQUIPE SIGNAL 50M 03S001351 | NC |
| 00125987000 | RW-00135-L40M CABLE EQUIPE SIGNAL 40M 03S001352 | 1 592,89 € With VAT (20%) |
| 00125986000 | RW-00135-L30M CABLE EQUIPE SIGNAL 30M FAR31X0 | NC |
| 00125983000 | RW-00135-L15M CABLE EQUIPE SIGNAL 15M 03S001352 | NC |
| SN36CF | SN36CF (FAR3230SB/3230SSDB/FAR2238SB/FAR2238SSDB) | NC |
