TZT12F

Multifunction displays Ref : IMD034990AB

NavNet TZtouch3 Chart Plotter/Fish Finder - 1kW Dual Channel TruEcho CHIRP™, 12" Hybrid Control IPS Display

PRICE : 4 599,00 € With VAT (20%)


Description

GO ON A POWER TRIP WITH THE MOST POWERFUL MFD SERIES AVAILABLE

Hybrid controls enhance this 9 Multi Function Display™ , making it easy and intuitive to use under any sea conditions. Rest your hand on the RotoKey™ as you crash through the waves, and navigate easily to your charted destination. Featuring a new, powerful quad-core processor for lightning-fast response time and a built-in Single Channel 1kW TruEcho CHIRP™ & CW Fish Finder.



Quad-core processor for lightning-fast response

The 12" Hybrid Control TZT12F is an IPS multi touch display with an integrated control panel, including FURUNO's intuitive RotoKey™  and dedicated physical buttons to complement NavNet TZtouch3's multi-touch controls. The multi-touch IPS displays that deliver stunning presentations from virtually any angle. All TZT3 models incorporate a powerful quad-core processor that takes NavNet's TimeZero technology to the next level, offering 4-way split-screen displays and lightning-fast response time.

EASY to use; because finding your happy place shouldn't be difficult!

We listened to you and worked tirelessly to make TZtouch3 the easiest MFD on the market to use... bar none. With edge-swipe features and single tap menu options, you’re never more than a tap or swipe away from what you want to see or do. It’s that simple.



The return of Hybrid Control

Captains who have smaller boats know that when you are crashing through the waves, it can be difficult to get an accurate tap on the screen. That’s why we made a TZtouch3 MFD with Hybrid Control. You get the best of both worlds with a full multi touch display and a handy, built-in keyboard that features a Rotokey™, cursor pad and dedicated buttons!



Pin Code Lock - require a password to access your TZtouch3 upon startup

The new PIN CODE Lock feature allows you to require a four-digit password to be entered upon startup, keeping your data safe against theft.

NEVER LOSE WAYPOINTS, ROUTES OR SETTINGS AGAIN WITH TZ CLOUD

Create your routes at home using TZ Navigator, a web browser*, or TZ iBoat iOS App. Then you can retrieve them from the cloud & download to your TZtouch3. Also, create events on your MFD and retrieve them at home because the data is synchronized automatically & securely to My TimeZero. TZ Cloud also stores marks, routes, boundaries, photos, and catch data! (*Cloud.MyTimezero.com raster planning charts for US only)

Built-in Dual Channel 1 kW TruEcho CHIRP™  & CW Fish Finder

Every TZtouch3 MFD includes a built-in 1kW, dual-channel TruEcho CHIRP™  Fish Finder. TruEcho CHIRP™ , designed to operate across a wide range of frequencies utilizing a broadband transducer, delivers significant advantages in signal clarity & target definition. Due to the constant sweeping of frequencies, TruEcho CHIRP™  is capable of gathering more & higher-quality data than traditional Fish Finders. For those looking for a higher-power CHIRP Fish Finder, FURUNO has made it possible to pump up the power of TruEcho CHIRP™  by interfacing the Deep Impact DI-FFAMP to the internal Fish Finder. Deep Impact boosts your power to a 2 kW or 3 kW CHIRP Fish Finder, ensuring that fish and bottom echoes come back sharp & clear at greater depths. Alternatively, the built-in Fish Finder is capable of outputting a traditional CW signal for those who prefer the industry-standard 50/200 kHz.

We gave you something to CHIRP about!

You spoke. We listened. And now we delivered! TZtouch3 incorporates a powerful internal 1kW TruEcho CHIRP™ Fish Finder. For many, this is the perfect Fish Finder, but for some, they need even more. So, we proudly bring you Deep Impact (DI-FFAMP), a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP™ Fish Finder. But if that's not enough, Deep Impact allows you to connect a 5kW or 10kW transducer with the BT-5. Go big or go home!



Revolutionary New Features for Fishermen - Fish-It & Drift-It!

The Fish-It & Drift-It features, available only from Furuno, help you locate the correct spot to start your drift so you'll pass right over your fishing point. Tapping on a location on the chart, such as a pinnacle, wreck, charted artificial reef, or even a hot fishing spot on the Fish Finder or DFF3D Multi-Beam Sonar screen, creates a temporary "fishing go-to point" with dynamic range rings, a course line between the point and the boat, and a temporary track line. Now activate Drift-It, an exciting new feature that automatically creates a starting point for the vessel to drift directly over your Fish-it spot. Select a 3-minute, 5-minute, or even a 20-minute drift, navigate to the starting point, and drift to the Fish-it location in the time selected. This is a game-changer for fishermen!

CHIRP Side-Scan at great distances on each side of the boat!

Furuno CHIRP Side-Scan provides benefits for inshore or coastal fishing that cannot be duplicated with a traditional Fish Finder, allowing you to see the presence of fish targets near piers and bridges before casting a lure or jig. With the ability to see structure and fish targets at unprecedented distances up to 750 feet, you will have the ability to scout fishing locations without scaring fish away due to engine noise or boat shadow in shallow water. You will also be able to find and fish uncharted bottom structure while mitigating the risk of grounding caused by unintentionally drifting into shallow areas.
All it takes is a free software update to Version 3.01 and connection of a CHIRP Side-Scan transducer to enable this feature in 1/4, 1/2, or full-screen presentations on NavNet TZtouch3 TZT12F, TZT16F, or TZT19F MFDs. CHIRP Side-Scan can be displayed and operated from the TZT9F and TZT2BB when connected to a TZtouch3 network that includes a TZT12F/16F/19F.

More power to see 120 degrees port-to-starboard; giving you an edge over the competition

Normal down-sounding Fish Finders have a beam angle of 40° or less. But with the DFF3D Multi Beam Sonar, you see 120° port-starboard for 200m (650+ ft). Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). When you match this with the Deep Impact TruEcho CHIRP™, you’ll have the ultimate fishing machine!

The DFF3D Multi Beam Sonar operates at 165kHz, giving you fantastic depth penetration while still displaying echoes in high-resolution. Compared to a 40° ultra-wide transducer, you will see 3-times the area around your boat, helping you to find fish you might have otherwise missed. Plus, you can see which side of the boat they are on!

Create stunning shaded relief charts on your NavNet TZtouch3 MFD with PBG

Using the DFF3D Multi-Beam Sonar, NavNet TZtouch3's PBG (Personal Bathymetric Generator) allows you to create custom high-resolution shaded relief charts of the seafloor. Bottom images are drawn with shaded relief, depth contours, and variable colors, making it easy to identify hidden structure and ridges that hold fish in a simple, easy-to-interpret presentation. Multiple color palettes are available, including the ability to show contour lines only. The area each ping covers is approximately twice the depth at the time of recording, so at a depth of 100 meters, a 200 meter-wide area is displayed and recorded to your NavNet TZtouch3 MFD.

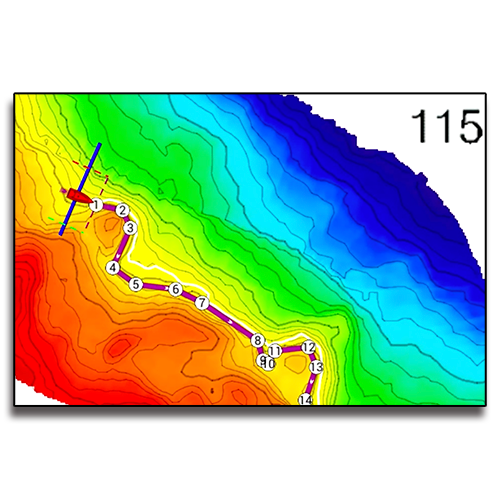

Follow-It instantly creates a constant-depth route!

The amazing Follow-It feature leverages the power of PBG (Personal Bathymetric Generator) from your DFF3D Multibeam Sonar to instantly create a constant-depth route to navigate a specific depth contour. With just a swipe and tap, Follow-It creates a white line on the PBG chart indicating the constant depth. Tapping the line instantly transforms it to an active route, sent directly to your NavPilot Autopilot. NavPilot will follow the depth route all the way around a ridge or trough. By following specific depth contours, fishermen can keep their baits at the same level as the fish while trolling without constantly adjusting the reels. Having your bait at the correct depth is critical to catching fish in areas where tide and currents flow along structure where gamefish concentrate.

MapMedia Raster and Vector Chart Library

Freely choose the charts that fit your individual needs. Easily select either raster, vector or fishing charts, Mapmedia brings an authentic vector and raster chart library to your NavNet TZtouch3. “C-MAP” as well as “Datacore by Navionics” vector cartography are optional charts that can be easily unlocked. Mapmedia cartography integrates cutting edge algorithms with high resolution image processing techniques to deliver a fusion of digital navigation charts and satellite photography.

Satellite photography is included in the MapMedia raster and vector charts, simply called Satellite PhotoFusion™. Land areas (zero depth) are completely opaque, displayed as satellite photos on the chart. As the depth increases, the satellite image is merged with the chart data to provide you with added detail on seabed areas in shallow water without losing vital chart information.

And finally, CMOR’s high-resolution, shaded-relief bathymetric bottom images help navigators identify suitable locations for fishing and diving.

Click here to view MapMedia chart options for your MFD.

More power means better detection of all the targets around you

Are you ready to go on a Radar power trip™ Nowhere else will you find Radar as powerful or with the amazing target detection of Furuno's NXT and X-Class Radars. We juiced the power of our NXT Solid-State Doppler Radars to give you outstanding long-distance performance that matches their amazing close range ability.



Build the ultimate Navigation Suite

The beauty of NavNet TZtouch3 is its scalability - systems can be as big or small as you need. Add, change or remove AIS, VHF, Compass, Weather and other sensors as needed to dial in your dashboard, whether fishing, cruising or sailing.

Product advantages

It has all THE POWER you've wanted... and more.

• More powerful quad-core processor for lightning-fast response
• Built-in Dual Channel 1kW TruEcho CHIRPTM & CW Fish Finder
• High-power 2/3/5kW* TruEcho CHIRPTM Fish Finder network amp
• Power-packed 100W & 200W NXT Solid-State Doppler Radars
• Deep water Multi-Beam Sonar for up to 300m depth & 200m side scan
• Large 19" and 16" multi-touch IPS display for maximum brightness
• Hybrid 12" display with RotoKeyTM and buttons for added accessibility
• Pin Code Lock - require a password to access your TZtouch3 upon startup
*Connect a 5kW or 10kW transducer using BT-5, power output is 3kW

Features

GENERAL
Chart Type: Vector or Raster or Satellite Photo or 3D Data or C-Map or CMOR
Display Size: 12 inches
Display Type: Color Multi Touch LCD
Frequency: CW 50-200kHz or CHIRP 40kHz to 225kHz
Power Usage: 12-24 VDC
Power Output: 300 W or 600 W or 1 kW
Receiver Type: GPS or SBAS or WAAS-GPS

DISPLAY UNITDISPLAY UNIT
Type: Color TFT multi touch In-Plane Switching (IPS) LCDScreen Size 12.1" Wide
Screen Resolution: WXGA 1280 x 800
Screen Brightness: 900 cd/m2 (typical)
Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)
Language : Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French,German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish

GPS/WAAS
Receiver Type: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS)
Receiving Frequency: L1 (1575.42 MHz)
Time to First Fix: 100 s (cold start)
Accuracy: 10 m (GPS), 7 m (MSAS), 3 m (WAAS)
Position Update: Interval 0.1 s
CHART PLOTTER: Cartography MapMedia mm3d chart (C-MAP/NOAA)
Memory Capacity: 30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)
Alarms: Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required)

RADAR
Display Modes: Head-up*, North-up* (*Heading input required).
Echo Trail Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous
Target Tracking: 30 ARPA Targets
Radar Alarms: Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line

FISH FINDER
Transmit Frequency: CW: 50/200 kHz and CHIRP: 40 kHz to 225 kHz
Transducer: 300/600 W or 1 kW* (*Matching box MB1100 required for some FURUNO transducers).
Display Range: 2-1, 200 m, shift: 0-1200 m
Extension Mode: ACCU-FISHTM A-Scope, Auto (Fishing/Cruising), RezBoostTM , Bottom Discrimination, TruEcho CHIRPTM
Picture Advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
Fish Finder Alarms (option): School of fish, School of fish for bottom lock

INTERFACE
CAN bus/NMEA2000: 1 Port
NMEA0183: 1 Serial Output Port
LAN: 2 Ports (100 BASE-TX)
USB: 1 Port (USB2.0) for touch monitor and control unit
Video I/O
Input: 2 Ports (NTSC/PAL)
Output: 1 Port (HDMI 720p)
AUX I/O: 2 Ports (Event Switch and External Power Switch) and 1 Port Buzzer Output
SD Card Slot: 1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option)
Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max
Transducer: 1 Port

ENVIRONMENT
Temperature (IEC60945): -15°C to +55°C
Relative Humidity: 93% or less at +40° C
Waterproofing: IP56

POWER
12-24 VDC2.3 - 1.2 A

In the box

TZT12F-E MULTI FUNCTION DISPLAY 1 SET
INCLUDING:
- POWER CABLE FRU-3P-FF-A002M-000 (2 M) 1 PC
- 12-10 PIN ADAPTER CABLE FRU-CCB12-MJ-01 (0.5 M) 1 PC
- INSTALLATION MATERIALS
- ACCESSORY

NOTE:
- FLUSH MOUNT AS STANDARD
- ORDER THE OPTIONAL OP19-20 FOR BRACKET MOUNT

Technical characteristics

Brightness : 900 cd/m2
CHIRP Soundeur 1kW integrated : 1
Consuption : 27.6 W
Integrated GPS : 1
Integrated sounder : 1
Integrated Wifi : 1
NMEA0183 : OUTPUT
NMEA2000 : 1
Resolution : 1280X800 Pixels
Screan size : 12.1
Waterproof : 56 IP
