FCV1150

Sounder for fishing Ref : IMD03007001

12.1" color LCD sounder - 450 cd/m² - 800x600 pixels - 1000 à 3000W

PRICE : 7 199,00 € With VAT (20%)


Description

Setting the benchmark for Fish Finder performance

The FCV1150 is a color Fish Finder designed for a variety of professional fishing operations. It features a high-brightness, bonded 12.1" LCD display with AR-coated glass filter and anti-polarized sunglass filter, providing superior viewing even in direct sunlight. You can choose to display the echo presentation in 8, 16, or 64 colors, with color assignment dependent on the strength of the returned echo. The Furuno Free Synthesizer (FFS) Transceiver allows for a wide selection of operating frequencies. You may choose any two frequencies between 28 and 200 kHz to best suit your fishing operation. Output power is selectable from 1, 2 or 3kW. A wide variety of display modes and functions are available that provide skippers with simple and intuitive information.

Easily identify bottom fish from the seabed

The top of the seabed is displayed in white to easily discern the seabed structure from the bottom fish returns. While the conventional bottom discrimination function called “White Line” applied to the strongest echoes, the White Edge function enhances the discrimination of bottom fish and seabed by painting a very thin line above the bottom contour regardless of gain setting or display color.

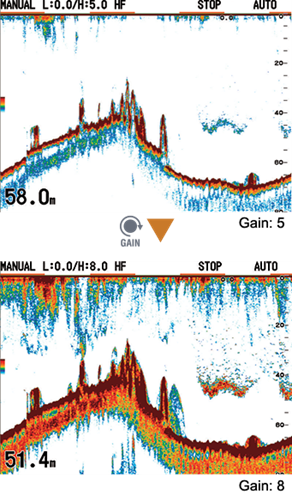

Post-processing gain control gives you quick results

With Furuno's post-processing gain control, changes you make to the Gain settings are applied not only to the new echoes, but also to all past echoes on the screen. You can compare past and current echoes using different Gain settings, allowing you to quickly and easily determine the right Gain setting for your conditions. No more waiting for the screen to repaint to see if your settings are the way you want them to look!

Fine tune your Fish Finder with the operating frequency adjustment

Faster transmission train for more detailed detection

The rate of transmission is increased by more than 30% compared to conventional Fish Finders. As the result, more detailed information about underwater conditions can be gained through the same sounding interval. With the AUTO transmission function, the rate is automatically raised in shallow waters and lowered in deep waters, which provides for detailed detection of seabed targets.

Unwavering, stable detection even in rough seas

Even in rough sea conditions, this unit can compensate for heaving, presenting a display without undulations caused by the sea conditions. A Furuno Satellite Compass is required.

Integrate your FCV1150 with NavNet

Through the Ethernet interface, the FCV1150 brings professional fish finding technologies onto your NavNet TZtouch or 3D network. Auto range, auto gain, shift and zoom controls can be performed from both the NavNet TZtouch/3D MFD and the FCV1150*.
* Manual gain control and mode selection can only be done by the FCV-1150.

Features

The fishfinder FCV1150 is designed for the different types of professional fishing. It has a high-brightness screen with anti-reflective and anti-polarizing filters for better visibility even in direct sunlight and a larger viewing angle. The representation can be done in 8, 16 or 64 colors depending on the density of the echo.
  • Screen size: 12.1 "
  • Dimensions: 345x356x199 mm
  • 800 x 600 pixel screen resolution
  • Power 1000 to 300W
  • 12-24Vdc power supply
  • NMEA183
  • IPX5 sealing
  • Frequency choice between 28 and 200 kHz
  • 50W power consumption
  • Transmitting power 1, 2 or 3 kW
  • Weight 8.2 Kg
  • Network output to connect a Maxsea

In the box

- 1 Screen
- 1 protective cover
- 1 stirrup
- 2 knobs
- 4 Fuses
- 1 Installation joint
- 1 cutting template for embedding
- 1 installation kit
- 2 pods
- 1 cleaning cloth
- 1 Installation Manual
- 1 User Manual
- 1 Simplified User Guide Laminated (Multilingual)

Technical characteristics

Brightness : 450 cd/m2
Frequency : 25-52, 66-110, 140-170, 184-220 kHz
NMEA0183 : 2
Power : 1k-3k W
Power input : 12/24 V
Resolution : 800x600 Pixels
Screan size : 12.1"
Waterproof : X5 IP

Parts and accessories

50BL-12HR Furuno FRP Transducer Blt Type 50BL-12HR 2kw 50kHz No Plug 3 299,00 € With VAT (20%)
28F-8 28F-8 *15M* SONDE 1KW 28KHZ 15M RICOPERTO IN GOMMA - Replaced by 00003834900 1 289,00 € With VAT (20%)
88B-8 Transducer 88B8 (1kW) - 88kHz - Rubber - cable 15m 989,00 € With VAT (20%)
88B-10 Sonde 88B10 - 88kHz - Rubber - câble 15m 1 279,00 € With VAT (20%)
200B-5S 200B-5S TRASDUTTORE 200kHz 1kW CON CAVO DA 10M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003834800 445,32 € With VAT (20%)
200B-8B Transducer 200B8B (1 or 2kW) - 200kHz - Rubber - cable 15m NC
50B-6 50B-6 *10M* SONDE 1KW 50KHZ - Replaced by 00003835100 404,57 € With VAT (20%)
50B-6B 50B-6B TRASDUTTORE 50kHz 1kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA - Replaced by 00003835800 369,00 € With VAT (20%)
00001506500 Transducer 50B9B - 50kHz - Rubber - cable 15m - Replaced by 00003835400 636,23 € With VAT (20%)
50F-8G 50F-8G *15M SONDE 1KW 50KHz 439,20 € With VAT (20%)
200B-12H 5 kW/ 200 kHz / 4 degree Beam Angle / 11 lbs. Rubber Coated - Tank Mounted / 15-Meter Cable, no connector provided NC
28BL-6HR Transducer 28BL-6HR - 28kHz - Plastic - cable 15m NC
28BL-12HR 28BL-12HR TRASDUTTOR 28kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP NC
38BL-9HR 38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP NC
82B-35R Transducer 82B35R 65 to 110kHz - Rubber - cable 15m 4 089,00 € With VAT (20%)
00001517000 Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic - Replaced by 00003835000 1 333,58 € With VAT (20%)
50/200-12M TRANSDUCER 50/200-12M (BRONZE) DUAL FREQ. non ROHS BRONZE 50/200KHz 1KW 12M 1 050,00 € With VAT (20%)
00001520600 TFB-5000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.5 THRU-HULL PIPE NC
00001520700 TWB-6000(2) TRAVERSEE COQUE TWB-6000(2) - 950,04 € With VAT (20%)
00001520900 TFB-7000(2) TUBO PASSA-SCAFO PER DUE CAVI - NO.7 THRU-HULL PIPE 1 068,48 € With VAT (20%)
00002689300 T-04MSB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN BRONZO PASSANTE 504,24 € With VAT (20%)
00002689400 T-04MTB SENSORE TEMPERATURA CAVO 8M CONN 6-PIN ACCIAIO DA POPPA 184,03 € With VAT (20%)
00004002700 T-03MSB T-03MSB - 1 397,09 € With VAT (20%)
00015403610 MJ-A6SPF0009-100C MJ-A6SPF0009-100C 22S0269-1 109,20 € With VAT (20%)
00015405410 Data cable (6PF<->Nu) 5m 45,00 € With VAT (20%)
ST-02MSB ST-02MSB CAPTEUR TEMP.& VITESSE CONNETTORE 6-PIN 429,00 € With VAT (20%)
ST-02PSB ST-02PSB CAPTEUR TEMP.& VITESS PLASTIC CONNETTORE 6-PIN 249,00 € With VAT (20%)
R399 R399 SONDE INT FIBRE 2-3KW MOD. FREQ./P/XID 15M R399 3 200,00 € With VAT (20%)
00001348600 PR-62 ALIMENTATORE 220VAC-24V PR-62 (CHINA) AC220V-24V POWER SUPPLY UNIT 826,56 € With VAT (20%)
B260 B260 DT TRANSDUCER 50/200Khz 1KW 50-200KHZ/P-T/XID/10M+SAB AVEC SABOT 2 059,00 € With VAT (20%)
00124047000 COSPEVVSBC 2PX0.2LF 2 PAIR CABLE *15M* 14S4231-0 293,98 € With VAT (20%)
00124046000 COSPEVVSBC 2PX0.2LF 2 PAIR CABLE *10M* 14S4231-0 219,08 € With VAT (20%)
00124044000 COSPEVVSBC 2PX0.2LF 2 PAIR CABLE *5M* 14S4231-0 120,40 € With VAT (20%)
00004004000 T-02MSB CAPTEUR DE TEMPERATURE - Replaced by 00002689300 1 083,54 € With VAT (20%)
00001504800 T-696 TANK FOR STEEL HULL 6 575,04 € With VAT (20%)
00001509200 38BL-15HR TRASDUTTOR 38kHz 3kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP 4 862,82 € With VAT (20%)
00001507300 68F-30H TRANSDUCER 2 739,94 € With VAT (20%)
00001506800 88F-126H TRASDUTTORE 88kHz 5kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA 3 954,05 € With VAT (20%)
00004002600 T-02MTB TEMPERATURE SENSOR - Replaced by 00002689400 819,60 € With VAT (20%)
00001503000 200B-8 *10M* TRANSDUCER 625,12 € With VAT (20%)
00001348400 PR-62 (CHINA) AC100V ALIMENTATION AC/DC 975,18 € With VAT (20%)
00003908800 88F-126H TRANSDUCER 02S3024-2 4 152,64 € With VAT (20%)
50B-6B 50B-6B *15M* TRANSDUCER NC
00003835500 68F-30H TRANSDUCER 2 739,94 € With VAT (20%)
50B-9B Transducer 50B9B - 50kHz - Rubber - cable 15m 659,00 € With VAT (20%)
50B-6 Transducer 1kW 50kHZ 50B-6 *10M* 28 degree Beam Angle ; 6.6 lbs. ; Rubber Coated - Chest, Housing or Tank Mounted ; 10-Meter Cable, no connector provided ; May be used for 75 kHz frequency setting feature, available only FCV1100/1200 and FCV1200BB 349,00 € With VAT (20%)
50/200-1T (RUBBER) Transducer 50-200-1T/ 50/200kHz/1kW/10m Plastic 1 219,00 € With VAT (20%)
28F-8 28F-8 TRASDUTTORE 28kHz 1kW SONDE 1KW 28KHZ 15M caoutchouc 1 389,00 € With VAT (20%)
200B-5S 200B-5S *10M* SONDE 1KW 200KHz 10M 02S3110-2 395,35 € With VAT (20%)
00001520500 TFB-4000(1) TUBO PASSA-SCAFO PER UN CAVO - NO.4 THRU-HULL PIPE 212,74 € With VAT (20%)
00001521800 TRB-1100(2) THRU-HULL PIPE 2 339,06 € With VAT (20%)
00001170700 FCV-1150-E LCD SONDEUR COULEUR NC
00104723000 02P6351 PNL PRINTED CIRCUIT BOARD FCV-1150 SP 462,78 € With VAT (20%)
10034200110 02-157-1301-1 CAPOT DE PROTECTION - - Replaced by 10034200210 65,35 € With VAT (20%)
10034171110 02-157-1002-1 PANEL LID - 23,15 € With VAT (20%)
00013798601 ST-02MSB SPEED/TEMPERATURE SENSOR 02S3113-1 - Replaced by 00116415010 424,94 € With VAT (20%)
00111884000 02-157-1008/#6601-P KNOB C CV-1150 47,63 € With VAT (20%)
00111881000 02P6351A PNL PRINTED CIRCUIT BOARD FCV-1150 SP 462,78 € With VAT (20%)
00104724000 02P6350 PWR PRINTED CIRCUIT BOARD FCV-1150 SP - Replaced by 00148196000 1 891,90 € With VAT (20%)
00014888412 231-303/026-FUR CONNECTOR 20S0380-2 23,15 € With VAT (20%)
00103346000 02-157-1004/#6601-P KNOB A CV-1150 37,04 € With VAT (20%)
00103344000 FCV-1150 R-COVER REAR COVER ASSEMBLY - 536,21 € With VAT (20%)
00103343000 FCV-1150 BEZEL BEZEL ASSEMBLY - 127,01 € With VAT (20%)
00102645000 KNOB(N2.5) KNOB MFDBB 43,66 € With VAT (20%)
00016727410 734206-1JP-#18-L50 CONNECTOR ASSY 02S6044-0 65,35 € With VAT (20%)
00016572710 MMF-06G12DM-RN1 FAN MOTOR ASSEMBLY 02S5200-0 99,76 € With VAT (20%)
00016496710 734-210 CONNECTOR - 41,68 € With VAT (20%)
00015773610 FS50UM-3 B00 MOS FET - 37,04 € With VAT (20%)
00014051310 RK117111400X POTENTIOMETER 02S4978-0 37,04 € With VAT (20%)
