NAVPILOT711C
Pilotos automáticos NavPilot Ref : IMD034240BBAutopilot CAN Bus, 4,1", FAP7011C + FAP7002
PRECIO : 2 299,00 € Con IVA (20%)Descripción
Self-learning and adaptive software
From the first dock-side setup through the last voyage you made, NavPilot711C continues to learn your vessel's steering characteristics. This allows dynamic adjustments to the boat's steering for vessel speed, trim, draft, tide and wind effects, weather, etc. These characteristics are stored in the processor's memory where they are continuously optimized to make the NAVpilot more versatile.

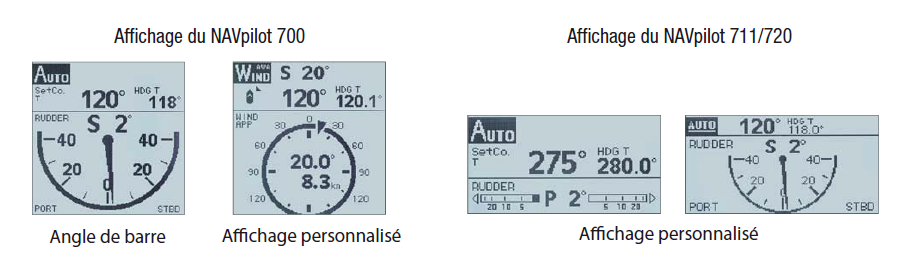

Display modes for NavPilot711C
The NavPilot711C use various display options to customize data to suit your own preferences using a variety of digital and analogue graphics.
FishHunter
FishHunter is a unique feature of FURUNO’s NAVpilot series like NavPilot711C. Find a fish target with your FURUNO sonar/sounder or bird target with your FURUNO radar and feed it to the NAVpilot. The NavPilot711C will activate the FishHunter to perform square, zigzag, circle, orbit, spiral or figure eight maneuvers around the specied target at a user selected distance. This feature can also be used for Man Overboard (MOB).

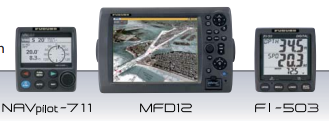

Perfect association
Furuno's new NavPilot series is designed to match the NavNet TZtouch, NavNet 3D, FI-50 Instrument series and other navigation equipment. The “Plug and Play” CAN bus interface allows for easy installation and exceptional interface ability.
Fantum Feedback
Furuno's all-new Fantum Feedback™ NAVpilot software clears the path to a simplified installation, while also delivering enhanced steering control. With Fantum Feedback™, NAVpilot outboard installations no longer require use of a physical rudder feedback unit.
This streamlined installation, combined with Furuno's unique adaptive learning Autopilot technology, provides unmatched outboard Autopilot performance. Fantum Feedback™ is a menu-selectable feature available in the latest NAVpilot700 series software. This new software was developed and extensively tested on a wide variety of outboard vessels with hydraulic steering and reversing pump control. Fantum Feedback achieves precise course control, from slow trolling speeds to high-speed cruising, utilizing a newly developed, time-based rudder gain process, rather than traditional rudder angle based control.
Ventajas del producto
NavPilot711C is a revolutionary autopilot with a sunlight viewable display designed for a variety of vessels. It utilizes a self-learning and adaptive software algorithm, and plays the ultimate role in course keeping capability, dynamically adjusting essential parameters for navigation i.e., vessel speed, trim, draught, tide and wind effects, dead band, weather, etc. These parameters are stored in the system memory and continuously optimized.
Funciones
CONTROL UNIT
Display 4.1" Color LCD
Effective Display Area 82.6 (W) x 61.9 (H) mm
Pixel Number 320 x 240
Backlight 8 steps
PROCESSOR UNIT
Steering modes STBY, Auto, Dodge, Turn, Remote, Advanced auto*, Navigation*, Wind*, Fish Hunter™*
* external data required
Sea Condition Adjustment AUTO/MANUAL-CALM/MODERATE/ROUGH
Rudder Angle Settings 10 - 45 deg
Alarm Heading deviation, Cross-track error*, Ship's speed*, Depth*, Water temperature*, Wind*, Watch, Log trip*
* external data required
INTERFACE
Ports CAN bus (NMEA2000): 1, NMEA0183: 2
Input AAM, APB, BOD, BWC, BWR, DBT, DPT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWV, ROT, RMB, RMC, THS, TLL, VHW, VTG, VWR, VWT, XTE, ZDA
Input (CAN bus) 059392/904, 060928, 061184, 126208/720/992/996, 127250/251/258/488/489, 128259/267, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/577/818/821/827/880
Output DBT, DPT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWV, RMB, RMC, ROT, RSA, VHW, VTG, VWR, VWT, ZDA
Output (CAN bus) 059392/904, 060928, 061184, 126208/464/720/992/996, 127237/245/250/251/258, 128259/267, 129025/026/029/033/283/284/285/827, 130306/310/311/312/822/823
WATERPROOFING
Processor Unit IPX0
Control Unit IP56
Other unit IPX5
OTHERS
Power Supply 12-24 VDC: 4.0 - 2.0 A (excluding pump)
Size 115 (H) x 115 (W) x 73 (D)
Weight 0.33 kg
Contenido
1 X Controller
1 X Protective cover
1 X Connection cable control <> processor, 15m
1 X Termination
1 X Installation joint
1 X Cutting guide for embedding
1 X Processor
4 X Fuses
1 X Cable, 20m
1 X Feedback linkage with ball joint
1 X Installation kits
1 X Installation Manual
1 X User Manual
1 X Simplified User Guide Laminated (multilingual)
Videos
Increase your catch with SABIKI mode on your NAVpilot 711C
FURUNO SabikiMode
Increase your catch with SABIKI mode on your NAVpilot 711C
FURUNO SabikiMode
Increase your catch with SABIKI mode on your NAVpilot 711C
FURUNO SabikiMode
Piezas y accesorios
| 00001076500 | FI-5002 JUNCTION BOX NMEA2000 8PORTS - FI70/FI50/NN3D/PG700 - | 179,00 € Con IVA (20%) |
| RO-00070 | FEEDBACK LINEAIRE A INTEGRER AUX VERINS 40ST16/50ST20 A SOLDER | NC |
| 00110580010 | M12-05BFFM-060 M12-05BFFM-060 19S1163 - Sustituido por 00150704000 | 92,88 € Con IVA (20%) |
| 00110579010 | M12-05BFFM-020 M12-05BFFM-020 19S1163 - Sustituido por 00150703000 | 51,00 € Con IVA (20%) |
| 00110578010 | M12-05BFFM-010 M12-05BFFM-010 19S1163 | 39,00 € Con IVA (20%) |
| 00108277000 | FP64-01411 ETRIER POUR FAP7021 FP64-01411 | 41,16 € Con IVA (20%) |
| 00108276000 | FAP-7011-BRACKET FAP-7011-BRACKET NAVPILOT-711 | 580,67 € Con IVA (20%) |
| 00108275000 | FAP-7001-BRACKET ETRIER/MOLETT FAP-7001-BRACKET NAVPILOT-700 | 661,24 € Con IVA (20%) |
| 00108273000 | FAP-7001-FLUSH-KIT KIT ENCASTREMENT FAP7001 NAVPILOT-700 | 120,40 € Con IVA (20%) |
| 00108121010 | BD-07AF-07AF-LR-200 CAVO 20M PER DISPLAY REMOTO NAVPILOT 64S4122 | 161,94 € Con IVA (20%) |
| 00108119010 | BD-07AFFM-LR-200 CAVO 20M DISPLAY-PROCESSORE NAVPILOT 64S4119 | 118,08 € Con IVA (20%) |
| 00108118010 | CABLE ASSEMBLY BD-07AFFM-LR-150 64S4119 | 99,84 € Con IVA (20%) |
| 00016860510 | TERMINATION RESISTOR(MICRO) LTWMC-05BFFT-SL8001 19S1186-0 - Sustituido por 00150706000 | 41,68 € Con IVA (20%) |
| 00002297100 | FAP-6300 FAP-6300NON-ROHS NAVPILOT700/711 - Sustituido por 00003649400 | 1 058,53 € Con IVA (20%) |
| 00002297200 | IPS INTERFACE UNIT IF-700IPS - | 684,00 € Con IVA (20%) |
| 00002387900 | FAP-7011C-E-A DISPLAY NAV-711C 1D CONTROL UNIT NAVPILOT-711C - Sustituido por 00004282000 | 739,00 € Con IVA (20%) |
| 00108114010 | TERMINATOR BD-07AFFM-LR7001 64S4121 | 26,04 € Con IVA (20%) |
| 00009023500 | FAP-6211-E COMMANDE DEPORTEE (BOUTON) CONNECT TO FAP-6800 | 794,40 € Con IVA (20%) |
| 00016050710 | NC-050505-FMF-TS001 MINI/MICRO T-CONNECTOR 19S1184-0 | 133,36 € Con IVA (20%) |
| 00016050810 | LTWMN-05AMMT-SL8001 TERMINATION RESISTOR(MINI) 19S1187-0 | 59,53 € Con IVA (20%) |
| 00016797110 | CB-05BFFM-010 CB-05BFFM-010 19S1165-0 | 49,20 € Con IVA (20%) |
| 00016860310 | MICRO T-CONNECTOR SS-050505-FMF-TS001 NMEA2000 - Sustituido por 00150705000 | 113,51 € Con IVA (20%) |
| 00016860410 | TERMINATION RESISTOR(MICRO) LTWMC-05BMMT-SL8001 MALE NMEA2000 - Sustituido por 00150707000 | 41,68 € Con IVA (20%) |
| TILLER-NFU | TELECOMMANDE NFU POUR NP711C PACK 1xXD4PA22 + 2x ZBE101 - | NC |
| 00004282000 | FAP-7011C-E-A CONTROL UNIT 1D NAVPILOT-711C | 739,00 € Con IVA (20%) |
| 00016797310 | CB-05BFFM-060 CABLE ASSEMBLY 19S1165-0 | 190,51 € Con IVA (20%) |
| 00108120010 | BD-07AF-07AF-LR-100 CAVO 10M PER DISPLAY REMOTO NAVPILOT 64S4122 | 120,40 € Con IVA (20%) |
| 00108117010 | BD-07AFFM-LR-100 CABLE ASSEMBLY 64S4119 | 99,76 € Con IVA (20%) |
| 00108116010 | MJ-A10SPF0001-120+ CABLE ASSEMBLY 64S4062 | 227,03 € Con IVA (20%) |
| 00108115010 | MJ-A10SPF0001-060+ CABLE ASSEMBLY 64S4062 | 203,21 € Con IVA (20%) |
| 00016797311 | CB-05BFFM-060 CABLE ASSEMBLY 19S1165-1 | 190,51 € Con IVA (20%) |
| 00150701000 | FRU-NMEA-PFF-010 CABLE ASSEMBLY 20S10511 | 79,12 € Con IVA (20%) |
| 00150703000 | FRU-NMEA-PFF-020 CABLE NMEA2000 MICRO5C F/NU 2M 20S10511 | 46,00 € Con IVA (20%) |
| 00150704000 | FRU-NMEA-PFF-060 CABLE NMEA2000 MICRO5C F/NU 6M 20S10511 | 69,00 € Con IVA (20%) |
| 00150705000 | CONNETTORE MICRO-T NMEA2000 FRU-MM1MF1MF1001 MFF MASCHIO/FEMMINA/FEMMINA | 82,00 € Con IVA (20%) |
| 00150706000 | TERMINATORE MICRO NMEA2000 F TERMINATION RESISTOR FEMMINA FRU-MF000000001 | 41,00 € Con IVA (20%) |
| 00900580000 | OP64-5 FLUSH MOUNT KIT FAP-6501 | 222,26 € Con IVA (20%) |
| 00150707000 | FRU-MM1000000001 TERMINATION RESISTOR(MICRO) MALE NMEA2000 | 41,00 € Con IVA (20%) |
| 00900403000 | OP64-2 BRACKET ASSEMBLY FAP-5551/5552 | 177,82 € Con IVA (20%) |
| 00900579000 | OP64-4 FLUSH MOUNT KIT FAP-6221/6222 | 222,26 € Con IVA (20%) |
| 00003802500 | YAMAHA-HM-GATEWAY Passerelle Yamaha NAVPILOT300 P-001098 | 1 659,00 € Con IVA (20%) |
| 00002297400 | AUTOPILOT-GATEWAY VOLVO IPS GATEWAY P-000583 - Sustituido por 00003802400 | 4 338,65 € Con IVA (20%) |
| 00002051000 | IF-NMEA2K2 CONVERTITORE NMEA 0183/2000 BIDIREZIONALE 1 INGRESSO/USCITA - Sustituido por 00003767000 | 319,00 € Con IVA (20%) |
| 00002716200 | YAMAHA-HM-GATEWAY Passerelle Yamaha NAVPILOT300 P-001098 - Sustituido por 00003802500 | 1 770,18 € Con IVA (20%) |
| 00002716300 | VOLVO IPS GATEWAY AUTOPILOT-GATEWAY P-001096 - Sustituido por 00003802400 | 2 767,58 € Con IVA (20%) |
| 00003649400 | VOLVO IF KIT FAP-6300 ROHS NAVPILOT700/711 | 3 486,50 € Con IVA (20%) |
| 00003767000 | IF-NMEA2K2 NMEA DATA CONVERTER 14S147356 CHINA | 319,00 € Con IVA (20%) |
| 00003802400 | VOLVO IPS GATEWAY AUTOPILOT-GATEWAY P-001096 R2A = 1 to 6 drives | 2 899,00 € Con IVA (20%) |
| 00016050910 | LTWMN-05AFFT-SL8001 TERMINATION RESISTOR(MINI) 19S1188-0 | 43,66 € Con IVA (20%) |
| 00016797211 | CB-05BFFM-020 CABLE ASSEMBLY 19S1165-1 | 110,08 € Con IVA (20%) |
| 00016796510 | M12-05BFFM-010 CABLE EQUIPE 19S1163-0 - Sustituido por 00150701000 | 63,50 € Con IVA (20%) |
| 00016796610 | M12-05BFFM-020 CABLE ASSEMBLY 19S1163-0 - Sustituido por 00150703000 | 67,48 € Con IVA (20%) |
| 00016796710 | M12-05BFFM-060 CABLE ASSEMBLY 19S1163-0 - Sustituido por 00150704000 | 92,88 € Con IVA (20%) |
| 00016797111 | CB-05BFFM-010 CABLE ASSEMBLY 19S1165-1 | 82,56 € Con IVA (20%) |
| 00016797210 | CB-05BFFM-020 CABLE ASSEMBLY 19S1165-0 | 110,08 € Con IVA (20%) |
| 00004281400 | NAVPILOT-711C-E-0A PILOTE AUTOMATIQUE | NC |
| 00109773000 | TZ7792501A(64P1158) PRINTED CIRCUIT BOARD NAVP700/11/20SP - Sustituido por 00166918000 | 1 219,81 € Con IVA (20%) |
| 00109779000 | TZ7793513A(FAP-7002) BASE ASSEMBLY PLATINE PWR FAP-7002 - Sustituido por 00166920000 | 2 727,36 € Con IVA (20%) |
| 00144026000 | TZ810-4A HARD COVER(GRAY) NAVP-711C SP | 75,67 € Con IVA (20%) |
| 00109774000 | TZ7793508A(FAP-7002) SHIELDED REAR COVERASSEMBLY NAVP700/11/20SP | 225,44 € Con IVA (20%) |
| 00016695411 | FI-5002-POWERCABLE CABLE ASSEMBLY 26S0004-1 | 71,45 € Con IVA (20%) |
| 00900118000 | RBT6 (2 PCS) ROD END ASSY. (2 PCS/SET) FAP-6112 | 221,21 € Con IVA (20%) |
| 00900089000 | CP64-02601 INSTALLATION MATERIALS FAP-6112 | 229,93 € Con IVA (20%) |
| 00109085000 | PG-700 M-BASE MOUNTING BASE | 63,50 € Con IVA (20%) |
| 00126158000 | TZ810-1 SURFACE MOUNTING SPONGE NAVP-711C S | 68,80 € Con IVA (20%) |
| 00109775000 | TZ7793509A(FAP-7002) REAR COVER ASSEMBLY NAVP700/11/20SP | 343,45 € Con IVA (20%) |
| 00126168000 | TZ810-6 KNOB GASKET NAVP-711C SP | 113,51 € Con IVA (20%) |
| 00126166000 | TZ810-5 KNOB NAVP-711C SP | 113,51 € Con IVA (20%) |
| 00126164000 | TZ810-4 CAPOT HARD COVER(WHITE) FAP-7011C | 75,67 € Con IVA (20%) |
| 00126162000 | TZ810-3 NUT LOCK NAVP-711C SP | 65,35 € Con IVA (20%) |
| 00126160000 | TZ810-2 SPIN NUT NAVP-711C SP | 92,88 € Con IVA (20%) |
