DRS6A-NXT

Antenas de radar serie DRS Ref : IMD03658000

25 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, less antenna and, cable.

PRECIO : 7 799,00 € Con IVA (20%)


Descripción

Target Analyzer™ function utilizing Dopper technology spots hazardous targets instantly

The NXT are the first Radars in the world to use FURUNO's exclusive Target Analyzer™ function. Targets that are approaching your vessel automatically change color to help you identify potentially dangerous targets. Green echoes are targets that stay stationary, or are moving away from you, while red echoes are hazardous targets that are moving towards your vessel. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ improves situational awareness and can increase safety by showing you which targets to look out for.

Rain Mode

When the “Rain mode” is on, rain echoes are shown in blue. This mode is particularly useful as it has the capability to detect targets masked by rain clutters.

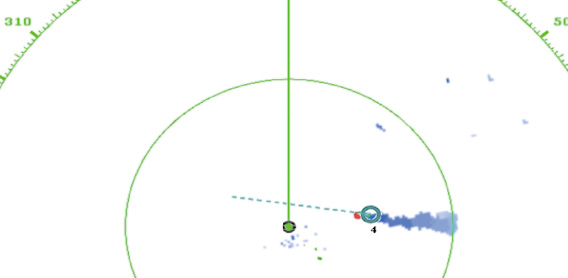

Fast Target Tracking and Auto Target Acquire function

With Fast Target Tracking™ activated, it only takes a few seconds for a vector to be displayed once the target is selected, manually or automatically with the Auto Target Acquire function.

When the Auto Target Acquire function is on, approaching targets within 3NM range from own ship, which are potentially hazardous, are automatically acquired by Doppler calculation and will trigger an alarm.

Together, Up to 100 targets can be acquired simultaneously, increasing considerably the safety and simplifying estimation of other vessel's course and speed.

Bird Mode

The NXT feature a new Bird Mode that helps you identify birds gathering around schools of fish at the sea surface. Bird mode adjusts the gain and sea settings automatically for optimal visibility.

RezBoost beam sharpening

FURUNO's exclusive RezBoost™ technology has been incorporated into our Radar units for enhanced resolution and impressive performance. With RezBoost™ set to MAX, the sharpness offers an incredibly detailed image with more targets and less clutter.

Ventajas del producto

  • Solid-State Technology
  • Target Analyzer
  • Funzione RezBoost
  • Fast Target Tracking (ARPA)
  • Bird mode

Funciones

The NXT radars are Solid-State Radars utilizing Doppler technology to ensure the safest navigation. The NXT series features Target Analyzer™, Fast Target Tracking™ and Auto Target Acquire function to offer optimal detection and sensitivity of hazardous objects. Combined with RezBoost™ technology, the NXT have no equal in spotting and tracking targets moving around your vessel efficiently with a high resolution.

Contenido

1 x Scanner Unit RSB-137-119
1 x Installation Materials

Características técnicas

Alimentación : 12/24 V
Dimensiones : 3.5'/4'/6'
Estado Sólido : Solid-State
Funciones : Target Analyser + RezBoost + Bird Mode
Haz : 2.3/1.9/1.4 °
Peso : 20/21/23 Kg
Potencia : 25 W
Rango : 72 NM
Tipo : Open
Velocidad de Rotación de Antena : 24/36/48 RPM
Dimensiones : 3.4/4/6 ft

Videos

FURUNO DRS-NXT Series Promotion Movie

Piezas y accesorios

SW-PMA-57-M1 PMA-57-M1 SUPPORT MODULAIRE INCLINAISON ARRIERE DE 5 "127 MM, BASE 7""X 7""" 317,78 € Con IVA (20%)
SW-ADA-R1 ADA-R1 PLATINE MODULAIRE TOUT RADOME ET RADAR POUTRE 254,52 € Con IVA (20%)
00116790010 LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 115,00 € Con IVA (20%)
00116789010 MOD-Z072-050+ CAVO LAN 5M CONNETTORI RJ45/RJ45 PER HUB 82,00 € Con IVA (20%)
00116788010 LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 61,40 € Con IVA (20%)
00016714010 JOINT BOX TL-CAT-012 - 19,00 € Con IVA (20%)
00152402000 OP03-259-2 EMC MODIFICATION KIT L=15M 404,57 € Con IVA (20%)
00152404000 OP03-259-4 EMC MODIFICATION KIT L=30M 572,33 € Con IVA (20%)
00152403000 OP03-259-3 EMC MODIFICATION KIT L=20M 468,61 € Con IVA (20%)
00152401000 OP03-259-1 EMC MODIFICATION KIT L=10M 340,54 € Con IVA (20%)
XN13A XN13A ANTENNA RADIATOR 6FT PER RADAR X-BAND 6FT 2 559,00 € Con IVA (20%)
XN12A XN12A ANTENNA RADIATOR - 1 359,00 € Con IVA (20%)
XN10A XN10A RADIATEUR 3.5FT - 1 259,00 € Con IVA (20%)
00003345300 CP03-37710 *15M* CABLE EQUIPE DRS6ANXT with 10A & 15A fuses - Sustituido por 00151262000 228,61 € Con IVA (20%)
CP03-37720 CP03-37720 CAB. 20M DRS6ANXT CABLE EQUIPE DRS6ANXT with 10A & 15A fuses - Sustituido por 00151264000 256,13 € Con IVA (20%)
00003345500 CP03-37730 *30M* CABLE EQUIPE DRS6ANXT with 10A & 15A fuses - Sustituido por 00151268000 378,38 € Con IVA (20%)
00151264000 CAVO ANTENNA DRS 20M X E NXT FRU-2P5S-FF-20M-A 20M PWR SUPPLY / LAN CABLE 229,00 € Con IVA (20%)
00003345200 CP03-37700 CABLE 10M DRS6ANXT ANTENNA CABLE ASSEMBLY DRS6A-NXT 152,41 € Con IVA (20%)
00151268000 CAVO ANTENNA 30M DRS X E NXT FRU-2P5S-FF-30M-A 30M PWR SUPPLY / LAN CABLE 339,00 € Con IVA (20%)
00151262000 FRU-2P5S-FF-15M-A CABLE 15M ALIM/ETHERNET 179,00 € Con IVA (20%)
00151260000 FRU-2P5S-FF-10M-A CABLE 10M ALIM/ETHERNET 139,00 € Con IVA (20%)
00003345000 RSB-137-119-E AERIEN NC
00822043000 RSB-0035/36/37/70/72 RADIATOR BRACKET /73/82/83/118 436,60 € Con IVA (20%)
00161976000 03P9603A(LF) SPU PRINTED CIRCUIT BOARD CHINA DRS6A-NXT 1 934,23 € Con IVA (20%)
00162008000 03P9602(LF) TRX TRX BASE ASSEMBLY CHINA DRS4D-NXT 2 034,78 € Con IVA (20%)
00143462000 RTR-115 W-GUIDE WAVEGUIDE ASSEMBLY DRS4D-NXT 261,96 € Con IVA (20%)
00159361000 03P9603C(LF) SPU PRINTED CIRCUIT BOARD DRS6/12/25A-NXT 1 934,23 € Con IVA (20%)
00155364000 TB5211 50G ADHESIVE 47,63 € Con IVA (20%)
00142633000 03-2480(REED SW-2P) REED SWITCH ASSEMBLY DRS6A/12A/25A_X 41,68 € Con IVA (20%)
00143457000 03P9602(LF) TRX TRX BASE ASSEMBLY DRS4D-NXT 2 034,78 € Con IVA (20%)
00148642000 03P9655(LF) PWR PRINTED CIRCUIT BOARD DRS6A-NXT 655,68 € Con IVA (20%)
00148638000 RTR-119 TRANSCEIVER ASSEMBLY DRS6A-NXT 4 688,98 € Con IVA (20%)
00148635000 RSB-137 LESS RTR SCANNER BODY ASSEMBLY DRS6A-NXT 4 150,12 € Con IVA (20%)
00148633000 SP03-19101 SPARE PARTS DRS6A-NXT 63,50 € Con IVA (20%)
00148632000 03P9603A(LF) SPU PRINTED CIRCUIT BOARD DRS6A-NXT 1 934,23 € Con IVA (20%)
00143660000 RSB-134 RJ ROTARY JOINT ASSEMBLY DRS6A/12A/25A_X 739,03 € Con IVA (20%)
00143653000 RSB-134 COVER COVER ASSEMBLY DRS6A/12A/25A_X 708,47 € Con IVA (20%)
00143649000 CP03-37101 INSTALLATION MATERIALS DRS6A/12A/25A_X 123,83 € Con IVA (20%)
00143640000 RSB-134 MOTOR MOTOR ASSEMBLY DRS6A/12A/25A_X 1 442,08 € Con IVA (20%)
