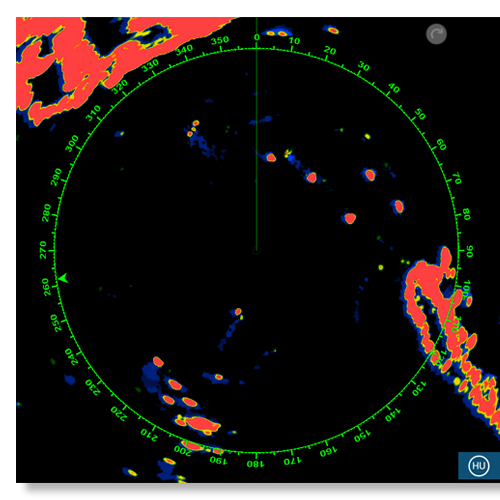

DRS4DL-Trails-Left

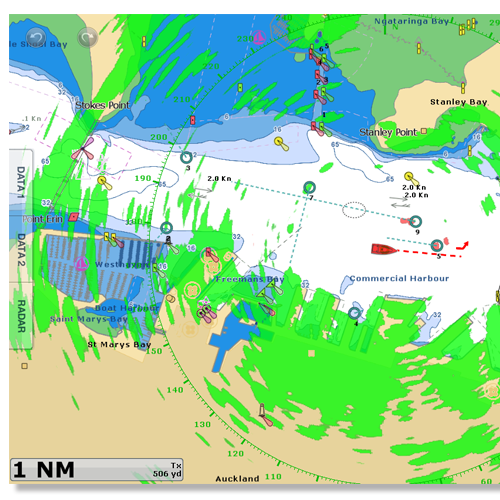

DRS4DNXT-FTT-Right
Fast ARPA Target TRACKING

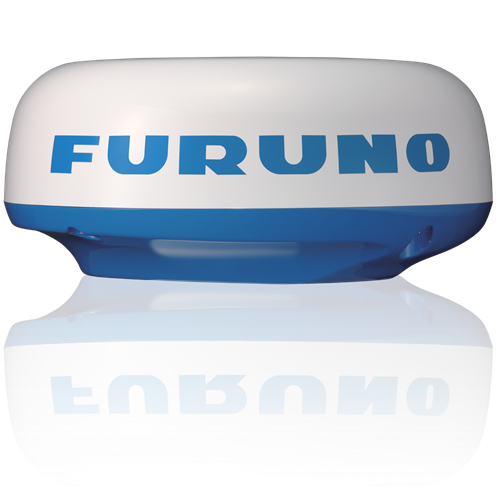

DRS4DL+

Antenas de radar serie DRS Ref : IMD03660001

4kW, 36 n.m., 19" UHD Radome Radar Sensor for NavNet TZtouch,TZtouch2, and TZtouch3, FR10/12, less cable.

PRECIO : 2 459,00 € Con IVA (20%)


Descripción

Powerful yet compact 4 kW

Powerful yet compact 4 kW Radar Antenna with a range of 36 nm

No external power supply

No external power supply needed, just connect your DRS4DL to the main battery on your vessel

Ultra High Definition (UHD)

Digital Radar offers crystal clear, noise-free target presentation with automatic real-time digital signal processing

Real-time digital auto GAIN/SEA/RAIN

Controls to deliver noise-free radar presentation

Fast Target Tracking

Fast Target Tracking (TT) / ARPA on the DRS4DL+ manually or automatically acquires and tracks 10 targets*. After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessel's course and speed is made simple.
*heading sensor required

Ventajas del producto

DRS4DL+ is a compact 19" radome Radar Antenna for use with the NavNet TZtouch series, radar FR10/12 and TIMEZERO software. A 4kW radar with an effective range of 36nm that offers simple installation without the need to purchase a separate power supply unit.

Advantages :
  • Poweful yet compact 4kW with a range of 36 nm
  • No external power supply needed
  • Ultra High Definition (UHD)
  • Real-time digital auto GAIN/SEA/RAIN

Funciones

  • Antenna Size: 19 inches
  • Antenna Type: Radome
  • Band: X-Band
  • Display Size: Supplied Separately
  • Display Type: Supplied Separately
  • Beam Width: 5.2 degrees
  • Power Usage: 12-24 VDC
  • Power Output: 4 kW
  • Range: 36 nm

Contenido

1 X Radar sensor
1 X Installation Materials
1 X Template
Spare Parts

Características técnicas

Alimentación : 12/24 V
Dimensiones : 19''
Estado Sólido : Magnetron
Haz : 5.2 °
Peso : 5.7 Kg
Potencia : 4k W
Rango : 48 NM
Tipo : Radome
Velocidad de Rotación de Antena : 24 RPM

Piezas y accesorios

SW-SM-18-U SM-18-U PLATEFORME DE MAT POUR RADAR DE 38/45 CM 653,52 € Con IVA (20%)
SW-PMA-57-M1 PMA-57-M1 SUPPORT MODULAIRE INCLINAISON ARRIERE DE 5 "127 MM, BASE 7""X 7""" 317,78 € Con IVA (20%)
SW-ADA-R1 ADA-R1 PLATINE MODULAIRE TOUT RADOME ET RADAR POUTRE 254,52 € Con IVA (20%)
RO-CMT1 COMPENSATEUR LIGNE DE FOI ROCMT1 POUR MAT ROTATIF 12VDC & 24VDC 1 379,00 € Con IVA (20%)
00151262000 FRU-2P5S-FF-15M-A CABLE 15M ALIM/ETHERNET 179,00 € Con IVA (20%)
00151264000 CAVO ANTENNA DRS 20M X E NXT FRU-2P5S-FF-20M-A 20M PWR SUPPLY / LAN CABLE 229,00 € Con IVA (20%)
00151268000 CAVO ANTENNA 30M DRS X E NXT FRU-2P5S-FF-30M-A 30M PWR SUPPLY / LAN CABLE 339,00 € Con IVA (20%)
00151260000 FRU-2P5S-FF-10M-A CABLE 10M ALIM/ETHERNET 139,00 € Con IVA (20%)
00134182000 CABLE ASSEMBLY MOD-ASW0001-200+ 19S1127-1 100,80 € Con IVA (20%)
00134166000 MOD-ASW0001-100+ MOD-ASW0001-100+ 19S1127-1 60,00 € Con IVA (20%)
00003495200 DRS4DL+E RADAR SENSOR NC
