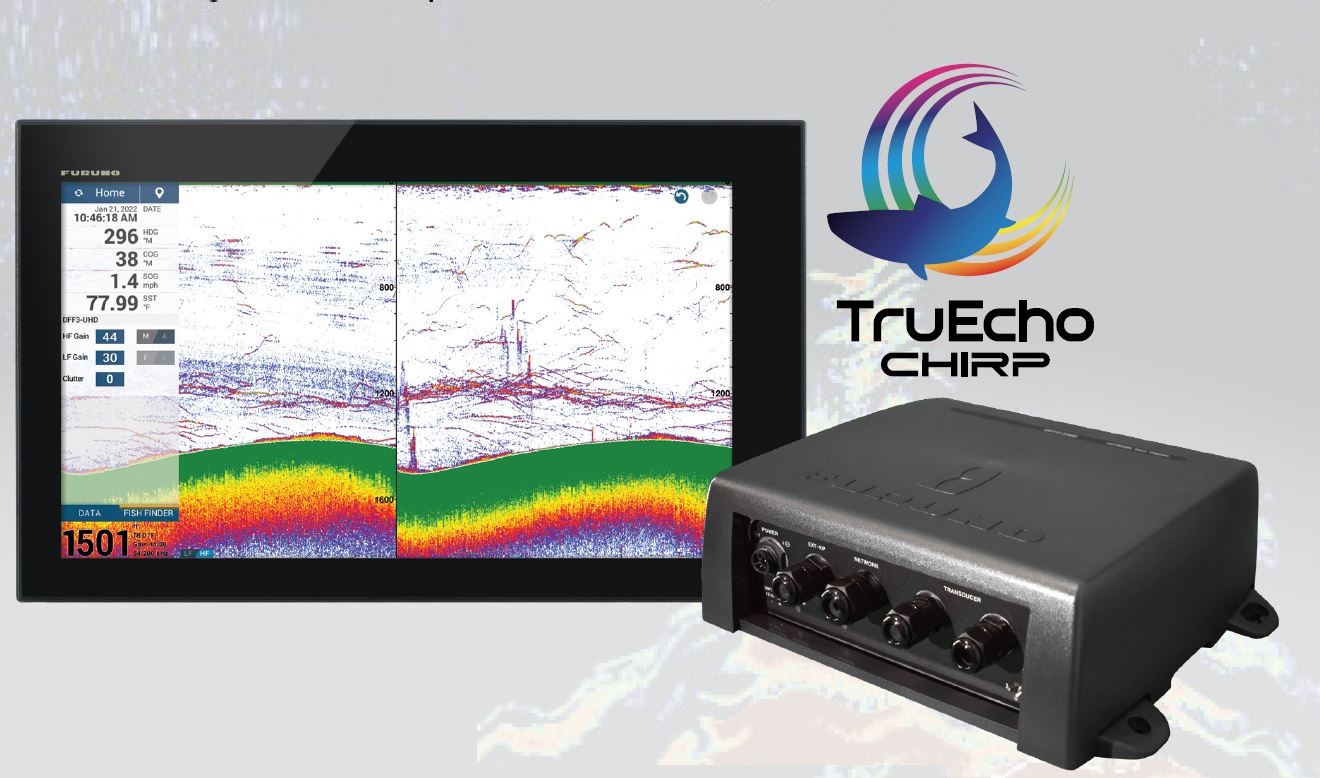

DFF3-UHD

Módulos de sonda black box NavNet y WASSP Ref : IMD03481DAA

Powerful Network Fish Finder compatible with 3 kW TruEcho CHIRP™ and CW.

PRECIO : 2 959,00 € Con IVA (20%)


Descripción

UNLEASHED: HIGH POWER 2kW/3kW TruEcho CHIRP™ NETWORK FISH FINDER

The DFF3-UHD High Power TruEcho CHIRP™ Fish Finder for NavNet TZtouch3 delivers the ability to see fish and bottom structures deeper and clearer than ever before. Furuno’s superior digital signal processing interprets echoes from fish and underwater structures with unparalleled clarity, accuracy, and resolution, at unprecedented depths - we’re talking maximum depth scales down to 15,000 feet!

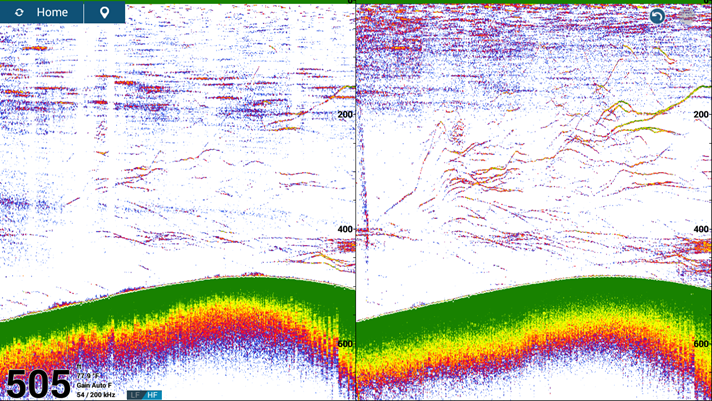

Screenshot taken at Key WKey West, Florida, USest, Florida, US

Targets detected here are bluefin tunas and amberjacks. The photo with catches in the previous page was taken in this area. Transducer : R109LHW - CHIRP 2 kW, 38-75 kHz et 150-250 kHz

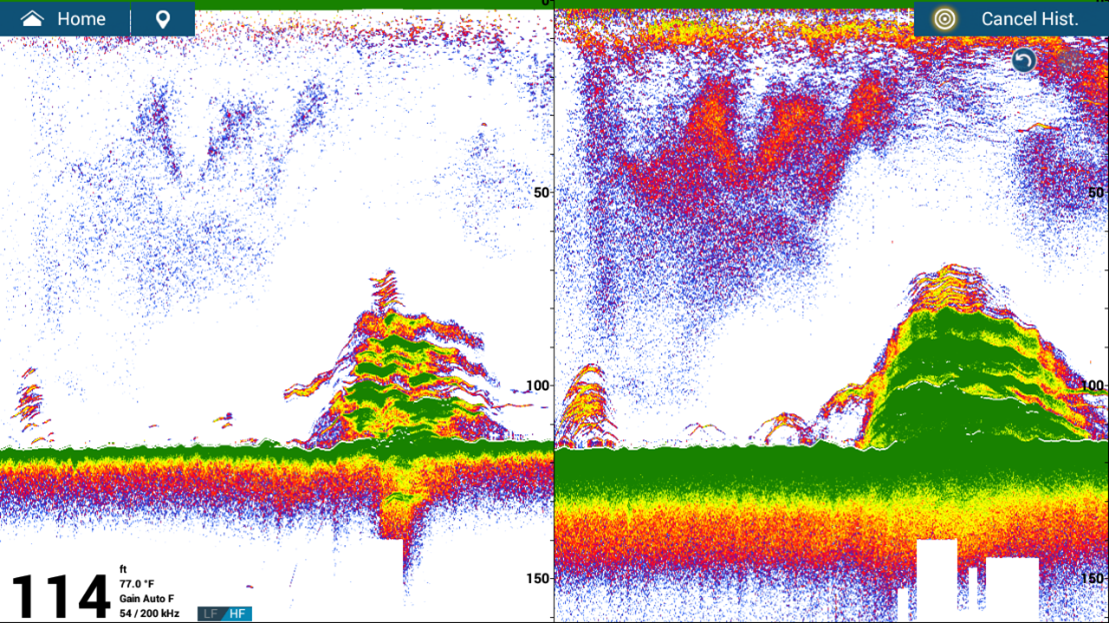

Screanshoot with Color Mode: Sunlight (NEW)

Echos de poissons autour d'une structure et dans la couche intermédiaire. Le mode de présentation sélectionné est le nouveau mode de couleur « Sunlight » disponible avec les TZT9F/12F/16F/19F v3.01 et TZT2BB v9.01.

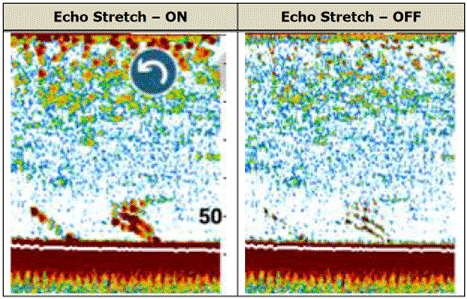

ECHO STRETCH

While CHIRP signal processing enables to show echoes in high difinition, there are some cases where small targets are not well visible due to too sharp echoes. The new Echo Stretch feature helps show targets in thicker echoes, which is useful when seeing the screen from a remote place or observing targets at deep water.

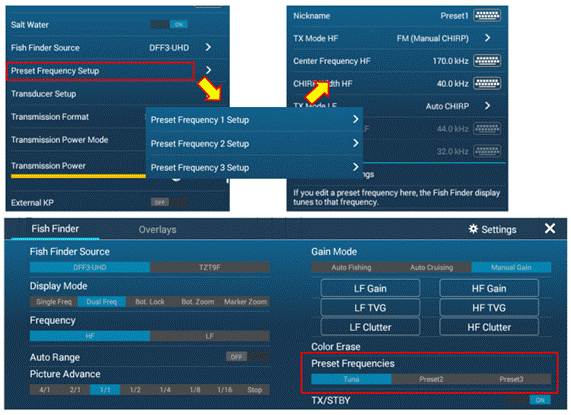

Transmission at Preset Frequency

A total of three (3) patterns of frequencies can be preset, similar to the built-in Fish Finder of TZT12F/16F/19F and DI-FFAMP. While suitable frequencies may change depending on fish targets or fishing grounds, the Preset Frequency function can be utilized when fishing on a variety of depths, from shallow to deep, and searching a variety of targets, from bait to predator fish, as well as avoiding interference from other boats.

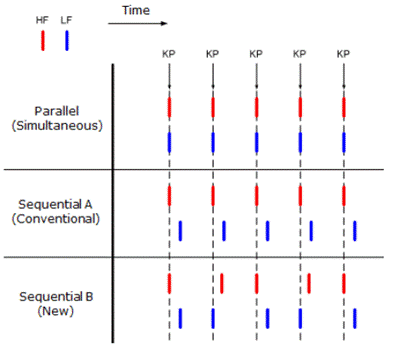

Sequential Transmission

While the DFF3-UHD can transmit dual frequencies simultaneously, a new option of sequential transmission is added (Sequential A / Sequential B), which helps to suppress the side lobe around the bottom.


Ventajas del producto

  • 2 kW or 3 kW Power Output
  • Transmits across Low, Medium, and High CHIRP frequency ranges
  • High Power = greater resolution and depth capability at all ranges
  • Compatible with NavNet TZtouch3 as well as NavNet TZtouch2 TZT2BB Black Box MFD
  • Gathers more expansive and higher-quality data than comparable tone pulse Fish Finders
  • Find and catch more of your target species, game fish and baitfish,
  • even when they're tightly schooled or near the seafloor
  • A-Scope feature and programmable Fish, Depth, or Temp Alarms
  • Enhanced automatic cruising or fishing modes to suit your style of boating


Funciones

  • TX Type : Dual Band CHIRP and CW
  • Output Power CHIRP: Max. 3 kW
  • CW: 2/3 kW
  • Max. Range Scale : 3 000 m
  • Frequency 25 to 242 kHz
  • BT-5 for 5/10 kHz CW Transducer Compatible
  • Interconnection Connect to MFD Network via Ethernet
  • Networked MFDs : NavNet TZtouch3 (v3+ software) and NavNet TZT2BB (v9+ software)
  • Power Supply: 12-24 VDC
  • Power Consumption : 3.0-1.6 A
  • Protection Level: IP55
  • Dimensions : 380 x 120 x 299 mm / 15 x 4.72 x 11.78 in
  • Weight : 3.6 kg. / 7.94 lbs.


Contenido

1 X Power cable FRU-3P-FF-A002M-001 2m, the same type as TZT16F power cable
1 X LAN cable MOD-Z072-050+ 5m
1 X Installation material, documents Fuse, etc.

Características técnicas

Alimentación : 12/24 V
Estanqueidad : 55 IP
Ethernet : 1
Frecuencia : 25-242 kHz
Función : CHIRP + CW
Potencia : 2k-3k W
Soporte : Fixed Mount
Tipo : Network sounder
universo : Fishing


Piezas y accesorios

00002740400 PM111LHG TRASDUTTORE CHIRP 2kW 38-75/130-210kHz BROADBAND URETANO CON SENS TEMPERATURA NC
00002253200 TFB-7000(1) TUBO PASSA-SCAFO PER UN CAVO THRU-HULL PIPE 1 255,79 € Con IVA (20%)
00137464000 C334 30M EXTENSION CABLE NC
00137462000 C44-02 30M CABLE RALLONGE 854,60 € Con IVA (20%)
00137458000 C44-02 50M EXTENSION CABLE NC
00116790010 LAN CABLE ASSEMBLY MOD-Z072-100+ 19S1181 115,00 € Con IVA (20%)
00116788010 LAN CABLE ASSEMBLY MOD-Z072-020+ 19S1181 61,40 € Con IVA (20%)
00003782000 PR-241 ALIMENTATORE 220VAC-24V CON INGRESSO 24V BACK-UP AC/DC POWER SUPPLY UNIT - Sustituido por 000037820NM NC
CM599LHG CM599LHG TRASDUTTORE CHIRP 3kW 28-60/130-210kHz BROADBAND URETANO CON SENS TEMP NC
CM599LH CM599LH SONDE EXT COQUE PLAST 2-3KW/CHIRP/P-T/XID 15M NC
R509LH-W R509LH-W SONDE TR PLAST 2-3KW 28-60kHz 150-250kHz NC URETANO CON TEMP E FAIRING 7 350,00 € Con IVA (20%)
28BL-6HR 28BL-6HR TRASDUTTORE 28kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP NC
50BL-12HR 50BL-12HR TRASDUTTOR 50kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP 3 299,00 € Con IVA (20%)
88B-10 88B-10 TRASDUTTORE 88kHz 2kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA 1 279,00 € Con IVA (20%)
200B-8B 200B-8B TRASDUTTORE 200kHz 2kW CON CAVO DA 15M NO CONNETTORE RICOPERTO IN GOMMA NC
82B-35R 82B-35R SONDE 2KW 65<->110 KHz 15M 4 089,00 € Con IVA (20%)
38BL-9HR 38BL-9HR TRASDUTTORE 38kHz 2kW CON CAVO DA 15M NO CONNETTORE HOUSING IN FRP NC
00001252100 BT-5-2 BOOSTER BOX 2 FREQUENZE PER TRASD. DOPPIA FREQUENZA - NC
00003852800 DFF3-UHD NETWORK FISH FINDER NC
00162919000 02P6421(LF) MAIN PRINTED CIRCUIT BOARD DFF3-UHD 2 845,51 € Con IVA (20%)
