TZT22X

Multifunction displays Ref : IMD041120BA

NavNet TZtouch3 Chart Plotter, 22" All-Glass IPS Display FULL HD (1920x1080)

PRICE : 12 990,00 € With VAT (20%)

Find a dealer

Description

Powerful Technology

Explore the future of navigation with NavNet TZtouchXL - extra-large, wide 16", 22", and 24" all-glass Multi Function Displays with exceptional clarity from all angles that enhance the functionality and style of your helm. Or go with the hybrid controls of the 10" & 13" options that make navigating intuitive and easy under any sea conditions, no matter the size of your vessel. NavNet TZtouchXL delivers the ability to tailor the helm to meet the captain's exact needs, with magnetron or Solid-State Doppler Radars, high-powered Fish Finders, AIS, Autopilot, and Deep Water Multibeam Sonar options, and more!

NavNet TZtouchXL delivers new features like TZ MAPS with BathyVision, the most advanced and capable electronic charts in the world. The TZ Maps engine draws upon a worldwide database of high-resolution information to create crisp, clear navigation with a variety of color themes and fishing charts with fully editable color palettes. TZ Maps deliver a timeless navigation experience at any magnification. It sounds incredible, and it is - you have to see it to believe it!

Effortless Control

You asked for the simplest interface possible, and we were listening. We’ve delivered the most intuitive UI available, bar-none, and you’ll be navigating with all the power and simplicity you demand. If you swipe your phone, you can operate TZtouchXL. With edge-swipe features and single-tap menu options, you’re never more than a tap or swipe away from what you want to see or do, because NavNet TZouchXL provides the easiest and most powerful MFD on the planet.

En savoir plus avec TZ MAPS

Avec la catographie TZ Maps, les navigateurs contrôlent les données cartographiques qu'ils souhaitent télécharger, telles que des zones de cartes incroyablement larges, des photos satellites et des données bathymétriques. Achetez des zones de cartes directement à partir de l'écran multifonction ! L'ombrage personnalisé des couleurs de profondeur et les superpositions de données bathymétriques créent des cartes de navigation d'une précision et d'une clarté inégalées, rendues avec une variété de thèmes de couleurs pour fournir une expérience de cartographie électronique qui va bien au-delà de tous les services de cartes haut de gamme qui l'ont précédée.

Vous pouvez créer vos propres objets utilisateurs ou mettre à jour les objets utilisateurs cartographiés, tels que des bouées, de sorte que lorsqu'elles se déplacent par rapport à leurs positions cartographiques précédentes, elles peuvent être mises à jour à la volée sur le système. Les objets personnalisés peuvent être partagés avec d'autres utilisateurs de TZ Maps par le biais du nouveau service de TimeZero, et peuvent être activés ou désactivés dans le menu Couches, accessible d'un simple glissement vers le haut à partir du bas de l'écran.

L'achat de n'importe quelle zone TZ MAPS débloque également des fonctionnalités supplémentaires, telles que la puissante fonction AI Routing qui planifie intelligemment des itinéraires en tenant compte du tirant d'eau du bateau ainsi que des profondeurs et des obstacles à la navigation indiqués sur les cartes. L'achat de n'importe quelle carte TZ Maps débloque aussi ces cartes dans l'application gratuite TZ iBoat pour les appareils mobiles tels qu'un téléphone portable ou une tablette. Vous avez ainsi une application gratuite de planification à la maison qui transférera vos waypoints et vos routes directement sur la Navnet TZtouchXL. Avec un compte TimeZero gratuit, les waypoints et les routes peuvent être facilement sauvegardés ou récupérés à partir du Cloud en quelques clics, garantissant que toutes les données que vous avez si durement créées restent en sécurité.

Experience 'off-the-charts' bathymetric data with BathyVision

BathyVision for TZ MAPS provides truly ‘off the charts’ bathymetric data with contour lines that can be configured with a single tap. When we say configurable, we’re talking down to a resolution of a mere 3 inches between contours - that's 3x better than any other bathymetric chart currently on the market. Bathymetric data is rendered from the same high-resolution database used for TZ MAPS’ custom depth shading and can be overlaid onto the navigation charts to create fishing charts unlike any seen before.

The Benchmark for Radar

However you spend your time on the water, you need a Radar you can rely on to keep you safe. Whether you choose the time-tested X-Class magnetron option or NXT Solid-State Doppler models, Furuno Radar delivers power and clarity like you’ve never seen and provides the assurance that you’re navigating with the most reliable and feature-packed equipment on the planet. From the compact DRS2DNXT/DRS4DNXT domes to the high-power 200-watt DRS25ANXT open array, you’ll quickly become accustomed to the dynamic features that only Furuno provides, like Target Analyzer™ that alerts you to potentially hazardous targets, Fast Target Tracking that displays a speed and course vector in seconds, best-in-the-business Bird Mode to track elusive flocks and even individual birds feeding on baitfish, and Rain Mode that can pick out and display in different colors the targets you need to see through even the nastiest of squalls. Plus, TZtouchXL introduces new Radar features, like Risk Visualizer™ and AI Avoidance Route™, that help keep you safe on the water.

Risk Visualizer™ and AI Avoidance Route™

Risk Visualizer™ is a unique function of Furuno Radars that provides a visual representation of potential collision risks of approaching objects around the vessel. Unlike CPA/TCPA alarms which indicate only the risks visible on the ship’s current course, Risk Visualizer™ assesses all objects 360° around the vessel. Dynamic icons are automatically created for targets with the highest collision probability, ensuring the captain has the information needed to maintain safe distances when passing.

The new AI Avoidance Route™ feature available with TZ MAPS takes all the information provided by the Radar and instantly determines and provides a safe route around those hazards.

Never lose waypoints, routes, or settings again with TZ Cloud

Create your routes at home using TZ Navigator, a web browser*, or the TZ iBoat iOS App, then download them to your TZtouchXL MFD from the cloud. You can also backup all of the events on your MFD and retrieve them at home, because your data is synchronized automatically & securely. TZ Cloud saves all of your marks, routes, boundaries, photos, and catch data - with a free TimeZero account, all of your data can be backed up or retrieved with just a few taps. The purchase of any TZ MAPS chart directly from the MFD also unlocks those charts in the free TZ iBoat app for mobile devices such as a phone or tablet and TZ Pro navigation software, providing the only home planning solution you'll ever need.

Built-In CHIRP Side-Scan

Furuno’s CHIRP Side-Scan for NavNet TZtouchXL scans both port and starboard, illuminating the shape of bottom structure in high definition. CHIRP Side-Scan reveals the shape of fish targets and fish-hoarding structure to each side of your vessel. CHIRP from 230kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options. CHIRP Side-Scan is built into the TZT10X/13X/16X, and can be accessed by any TZtouchXL MFD on the network.

A Dream Machine for Fishing Fanatics

We've raised the bar for sportfishing enthusiasts once again with an MFD series designed to cater to the needs of avid anglers. The NavNet TZtouchXL series includes all the features fishermen desire, including exclusive, never-before-seen features in recreational navigation devices. The TZT10X, TZT13X, and TZT16X feature a built-in 1kW TruEcho™ CHIRP or CW Fish Finder as well as built-in 230kHz or 455kHz CHIRP Side-Scan to show fish and fish-hoarding structure in great detail port to starboard, providing crucial insights for successful fishing trips. The TZT22X and TZT24X have full control across the NavNet network, and you can tailor the system with a wide array of high-powered Fish Finders for deep dropping.

Deep Water Multibeam Sonar

Normal down-sounding Fish Finders have a beam angle of 40? or less. But with the DFF3D Multibeam Sonar, you'll see a 120-degree swath, offering seafloor coverage up to 3X water depth. Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). The DFF3D's versatile operating modes give you a better understanding of fish targets than any normal Fish Finder can deliver. The 3D sounder history provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons - useful when selecting a fishing hot spot or assessing the seabed condition. Triple-Beam mode tells you not only the depth but also the direction (port/down/starboard) of fish targets. Cross Section display the real-time sea column echo in a 120? swath, and Side-Scan displays the shape and structure of targets both port and starboard.

Total Control

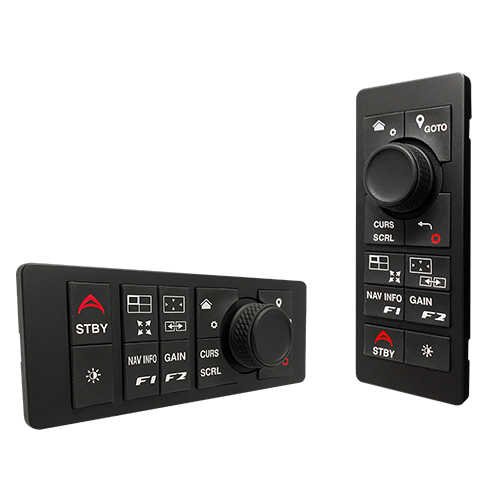

Looking for an added element of control? The vertically-oriented MCU006 and horizontal MCU006H are capable of controlling any TZtouchXL MFD in the network. Both feature a comfortable RotoKey™ and ten dedicated dual-purpose buttons that operate different functions, including the ability to access the Edge Swiping functionality that makes the NavNet TZtouch series so easy to use.

Pour plus d'informations, veuillez consulter notre site web dédié :

https://navnet.com/tztouchxl

Product advantages

Ultra-fast all-glass 16", 22", and 24" screens, or 10" and 13" Hybrid Control screens.
New TZ Maps cartography.
Purchase and update maps directly from the multifunction display with an Internet connection.
Compatible with NXT and XCLASS radars.
Integrated 1 kW TruEcho CHIRP™ and CW dual-channel sounder (TZT10X/13X/16X only).
Compatible with the high-power DFF3-UHD TruEcho CHIRP™ 2/3/5kW* sounder.
Integrated Side Scan CHIRP 235kHz or 455kHz (TZT10X/13X/16X only).
Powerful hexacore processor for fast response.
Compatible with the DFF3D multibeam sounder for deep water up to 300 m depth and 200 m lateral scanning, with the personal bathymetric generator (PBG).
Add a variety of optional remote controls, the MCU-006 and MCU-006H.
Furuno’s exclusive Fish-It, Drift-It, and Follow-It functions save time and fuel while increasing fish catches.

*The built-in power is 3kW; connect a 5kW or 10kW transducer using the BT-5 Booster.

Features

Map type: 3D data or C-Map or CMOR or Raster or Vector or Satellite photo
Screen size: 22''
Display type: Multi-touch liquid crystal colour display
Power consumption: 12-24 VDC

In the box

Protective cover (x1)
Power cable (x1)
5m Lan cable (x1)
Micro SD (x1)

Technical characteristics

Brightness : 900 cd/m2
Consuption : 31.2 W
Integrated Wifi : 1
NMEA0183 : OUTPUT
NMEA2000 : 1
Resolution : 1920 x 1080 Pixels
Screan size : 22
Waterproof : 56 IP

Videos

La nouvelle génération de NavNet est arrivée, voici les NavNet TZtouchXL !

Parts and accessories

Option

MCU-006	Vertical Remote Control for NavNet TZtouch3, NavNet TZtouchXL.	625,00 € With VAT (20%)
MCU-006H	Horizontal Remote Control for NavNet TZtouch3, NavNet TZtouchXL	625,00 € With VAT (20%)

Downloads

TZT10X/13X/16X/22X/24X/BBX EN (119.0 Mo)

TZT10X/TZT13X EN (19.9 Mo)

NavNet-TZtouchXL EN (17.1 Mo)
